EK TBE D5 RESERVOIR MOUNT

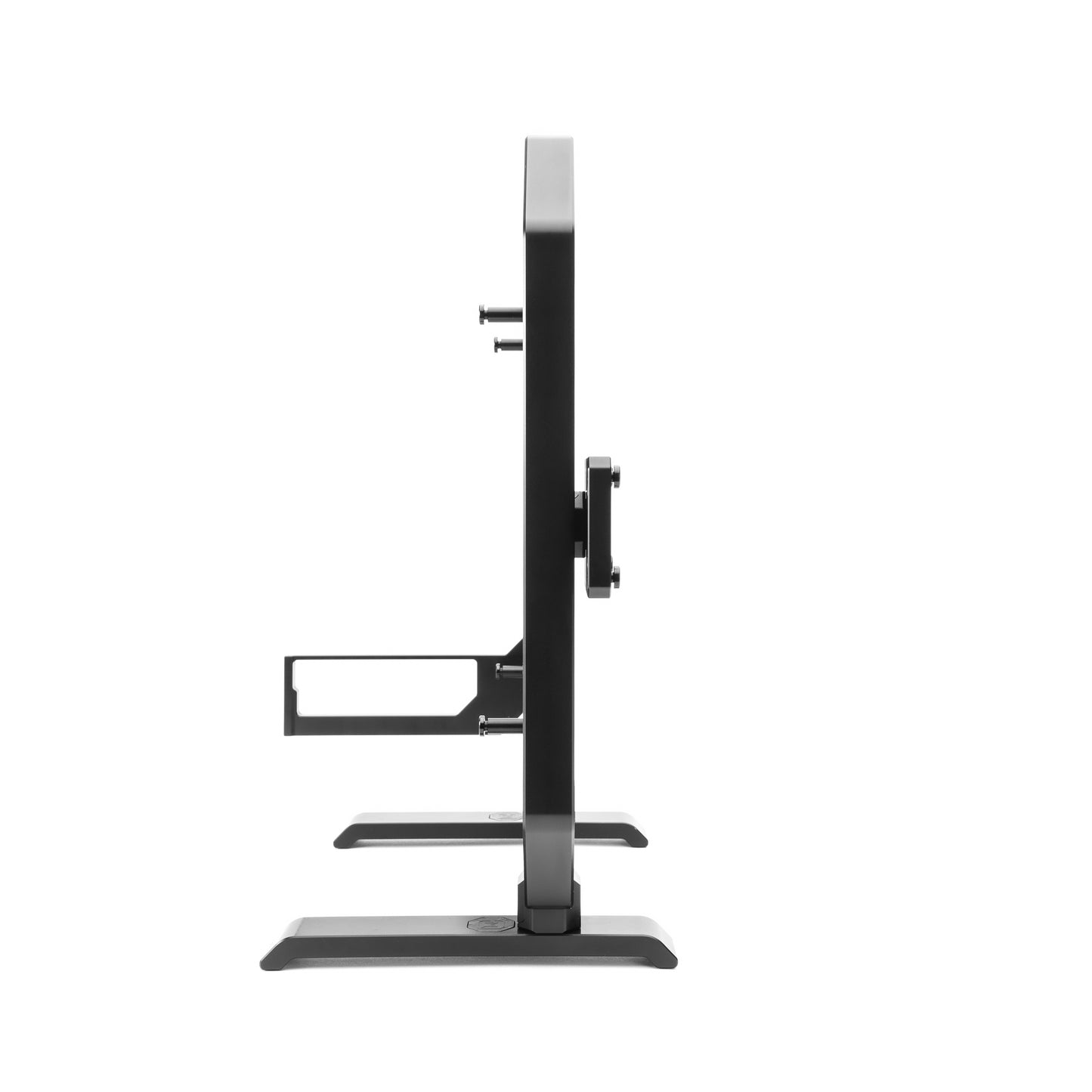

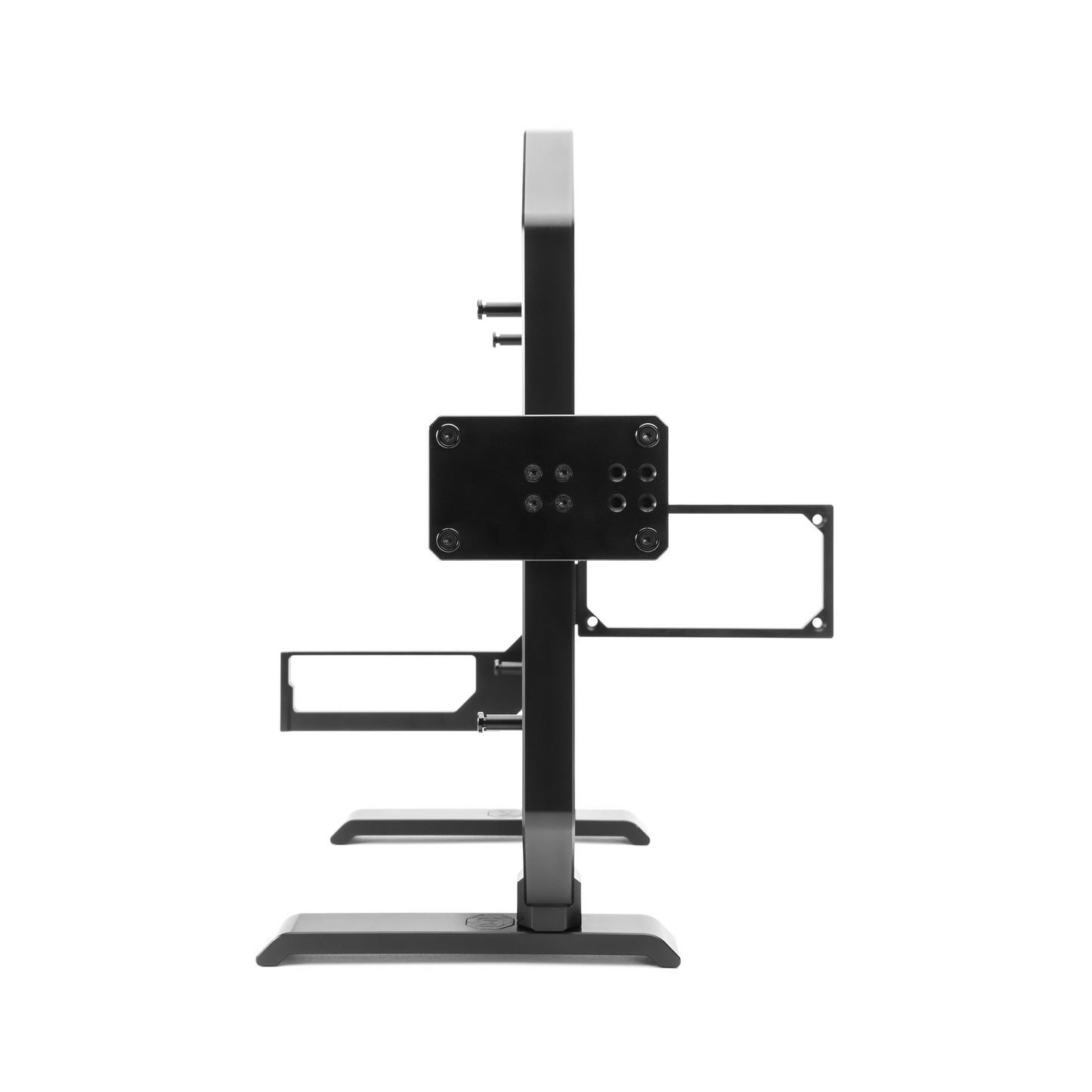

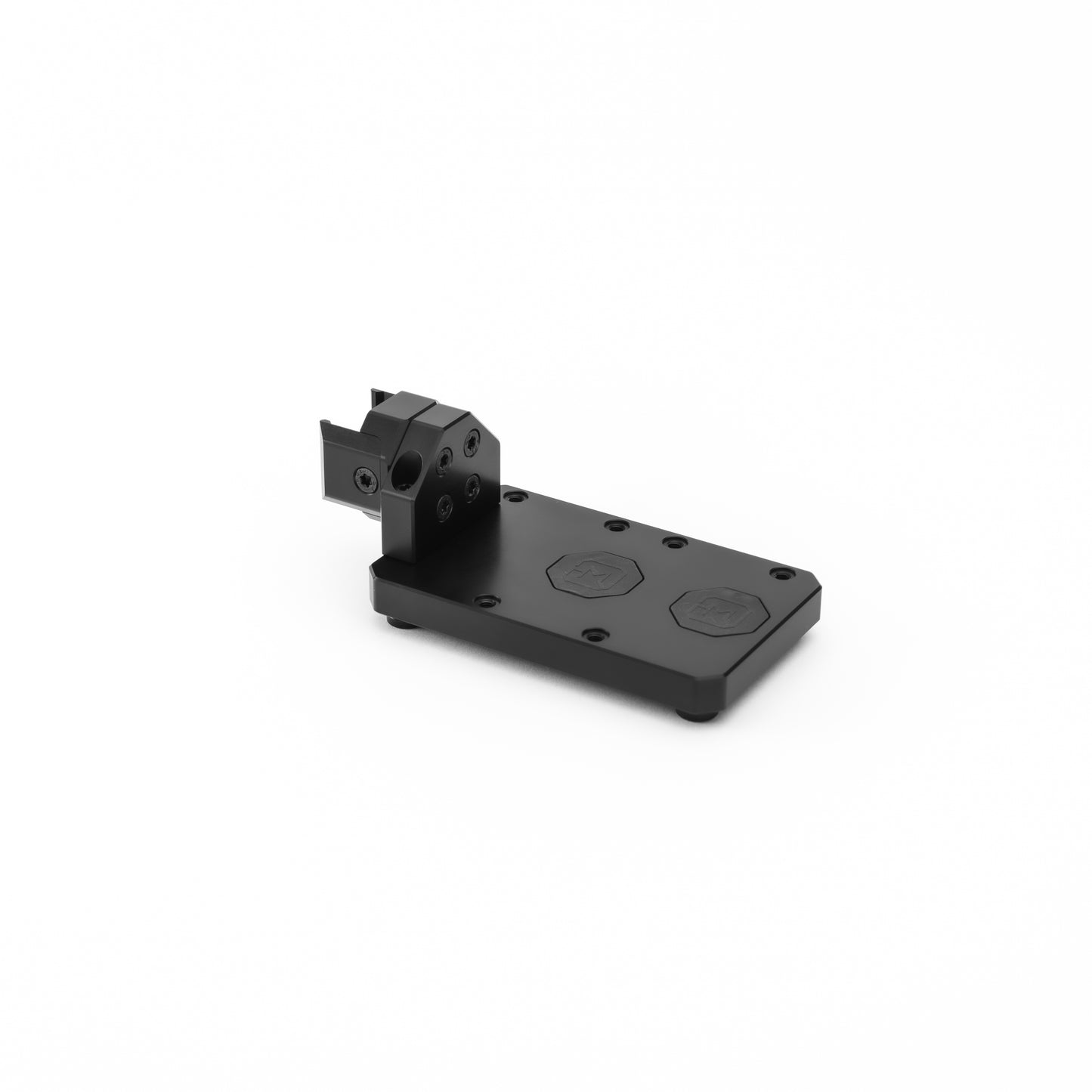

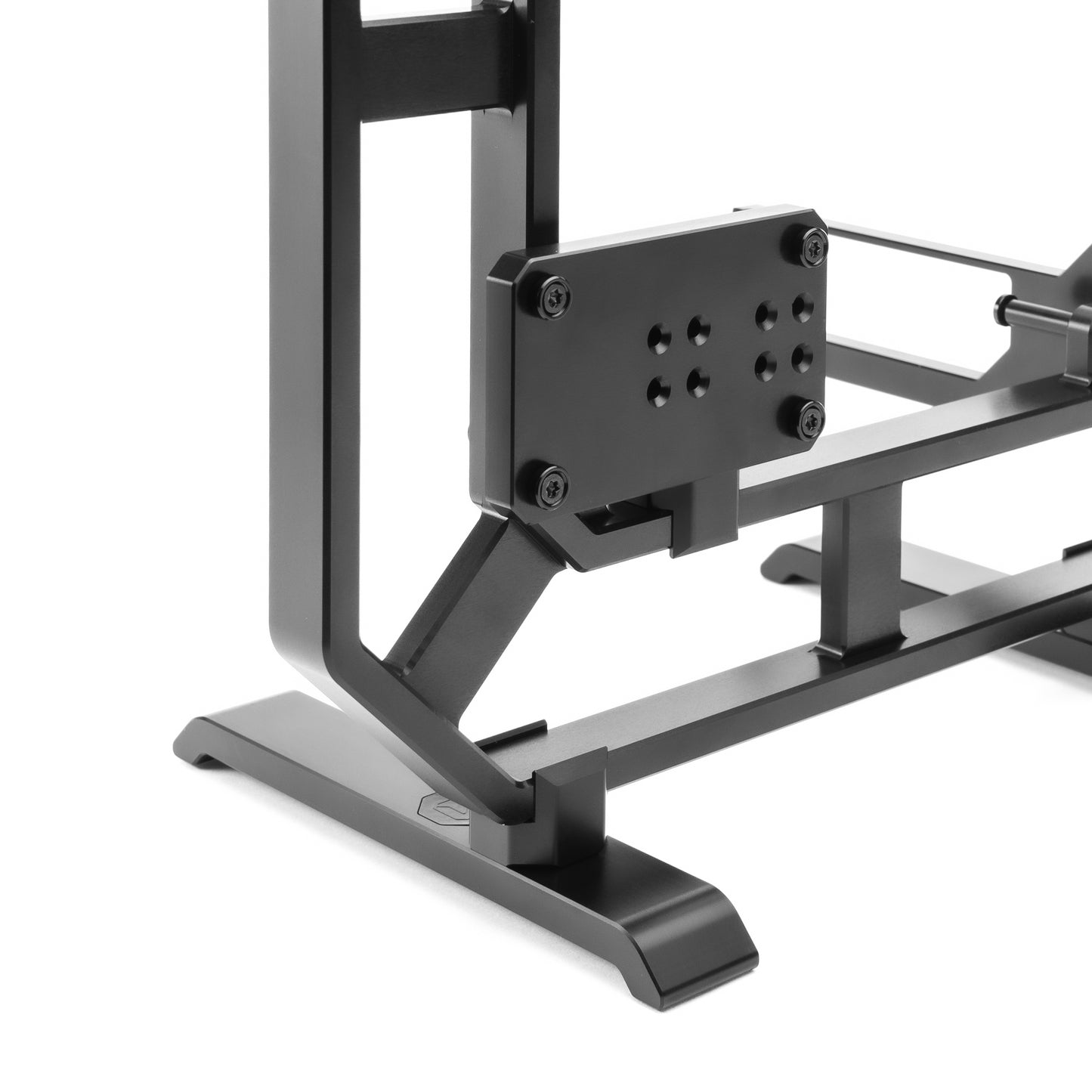

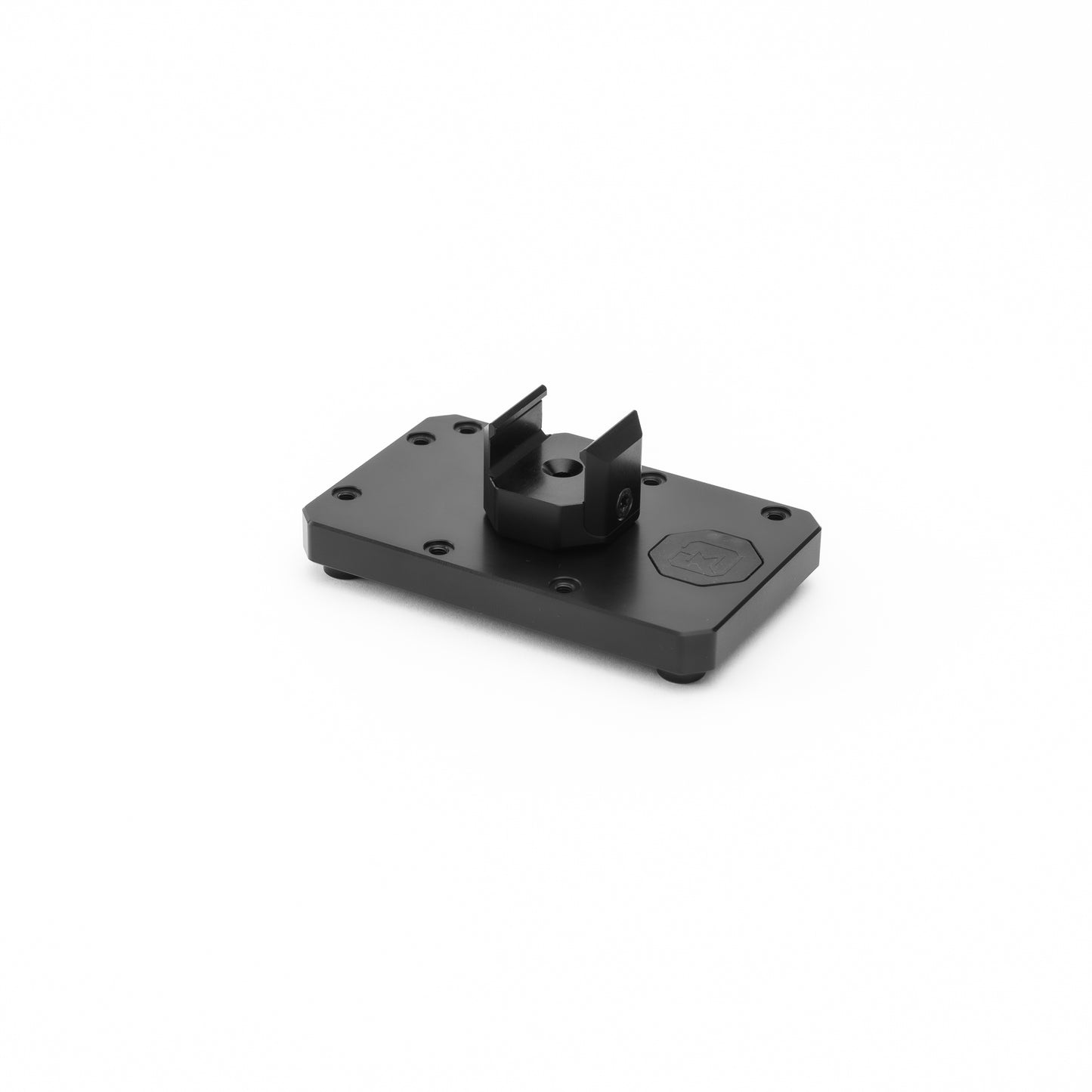

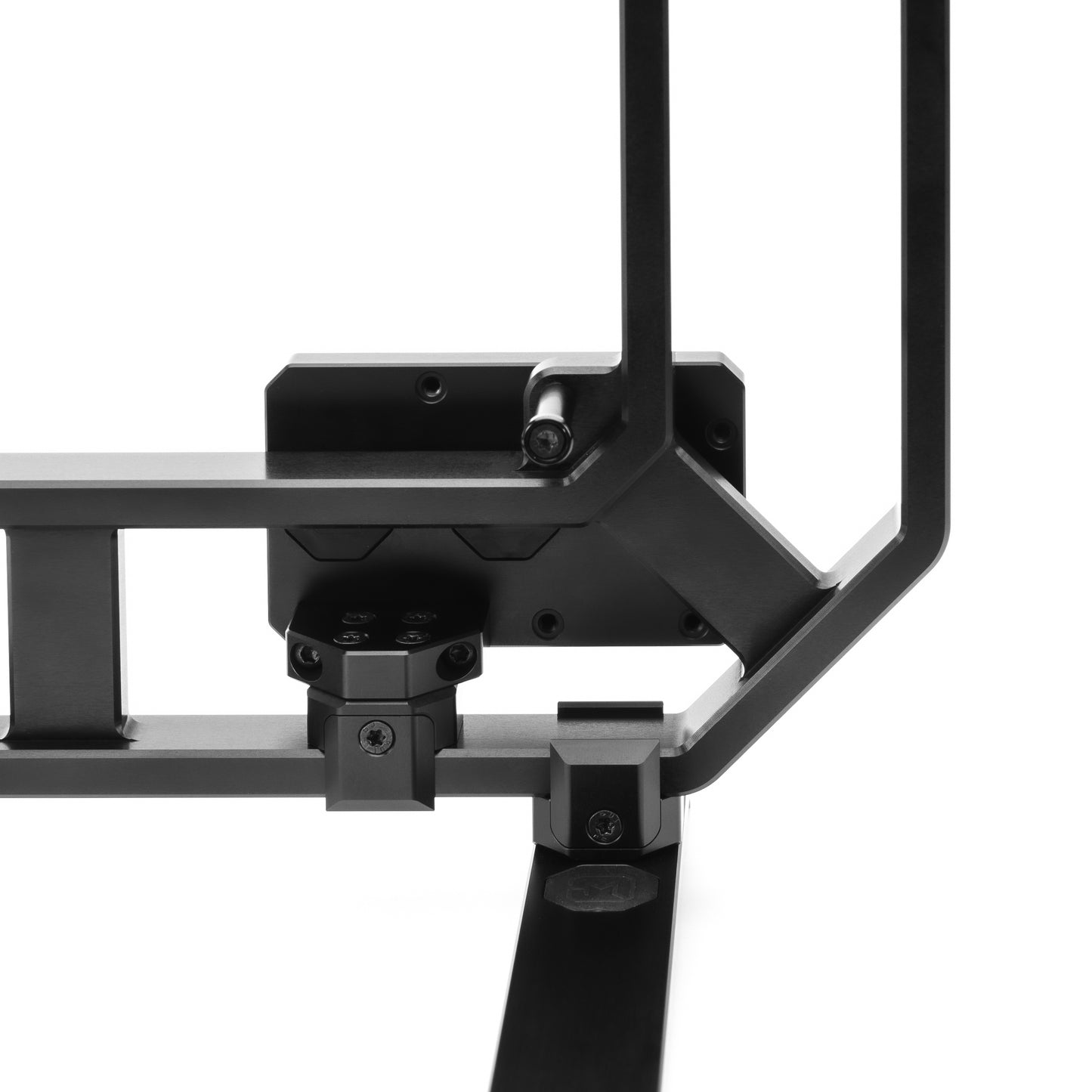

The EK TBE D5 Reservoir Mount is an assembly meticulously crafted to securely connect the reservoir to the main frame. It offers flexibility in attaching the reservoir to the frame rail from any side. Engineered to accommodate EK-Quantum Kinetic TBE D5 from EKWB, it boasts a hole arrangement ensuring compatibility. The structure is distinguished by exceptional rigidity and robustness.

Technical Details:

• Product Dimensions (W x H x D): 40 x 50 x 80 mm
• Color: Black Anodization
• Material: 6082 Aluminum, Steel (screws), TPE 60A (slot cover)

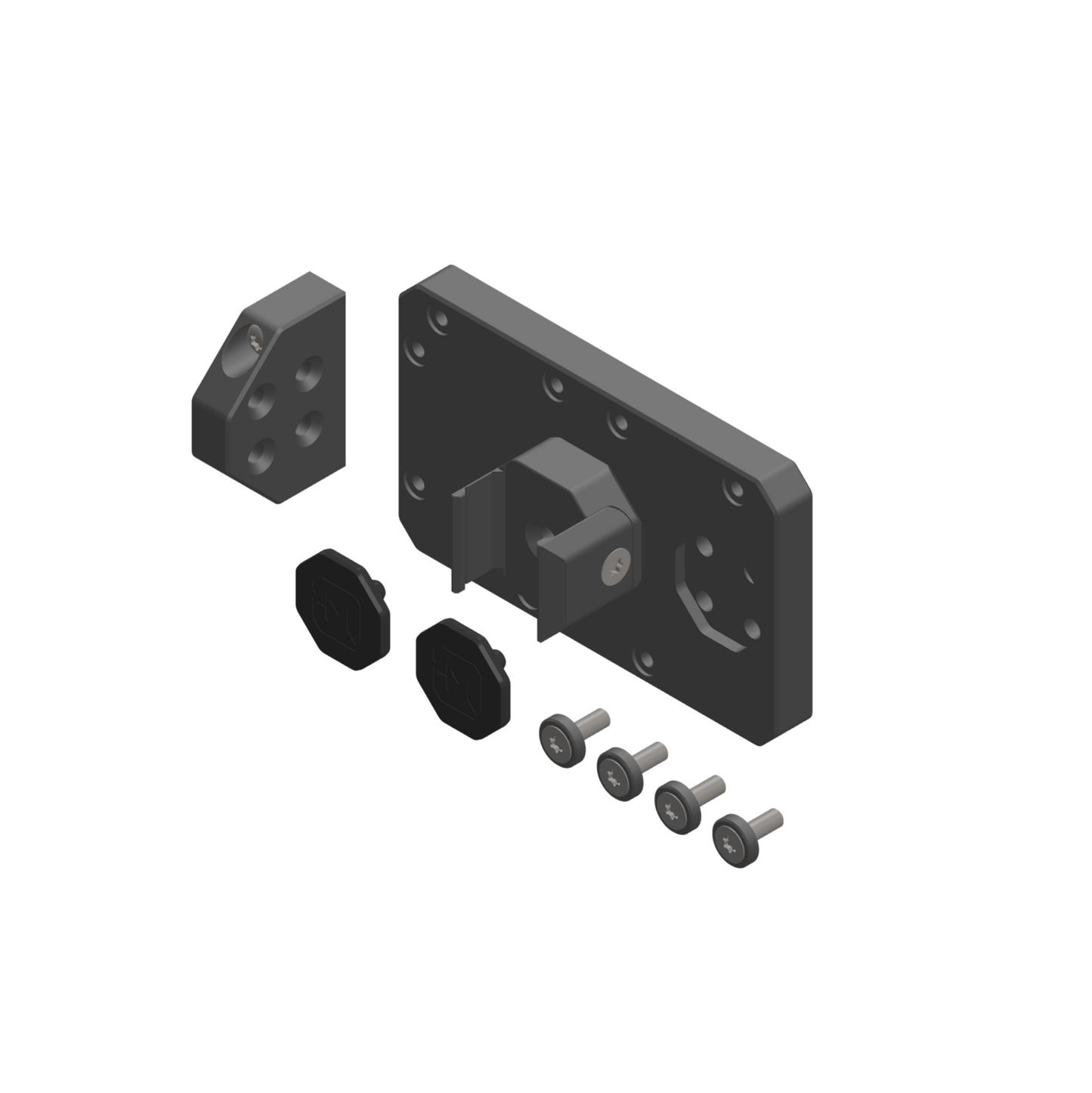

Delivery Scope:

• 1x EKWB TBE D5 Reservoir plate
• 1x Link (narrow)
• 1x SYS8 clamp assembly
• 11x Mounting screws
• 2x Slot cover
• 4x Washers

Supports:

• EK-Quantum Kinetic TBE 200 D5
• EK-Quantum Kinetic TBE 300 D5

Important Notes:

• Product dimensions may vary depending on the setup.
• The product is just anodized, not sandblasted, to maintain tolerances. There can be slight variations in the anodization shade between parts. Machining marks may be visible.

Instructions:

• For additional guidance, refer to the instructional Video. (Coming soon, contact us for any questions.)
