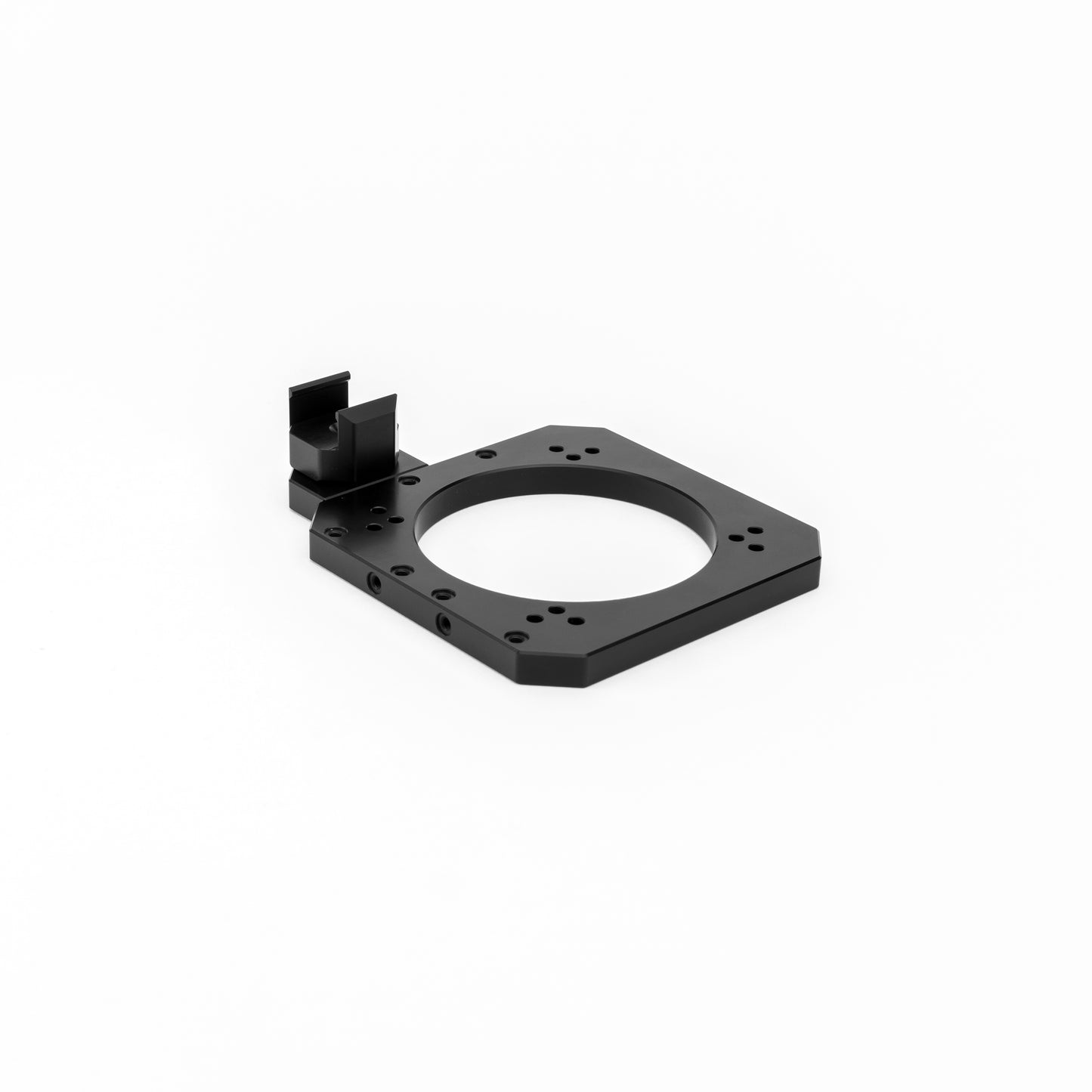

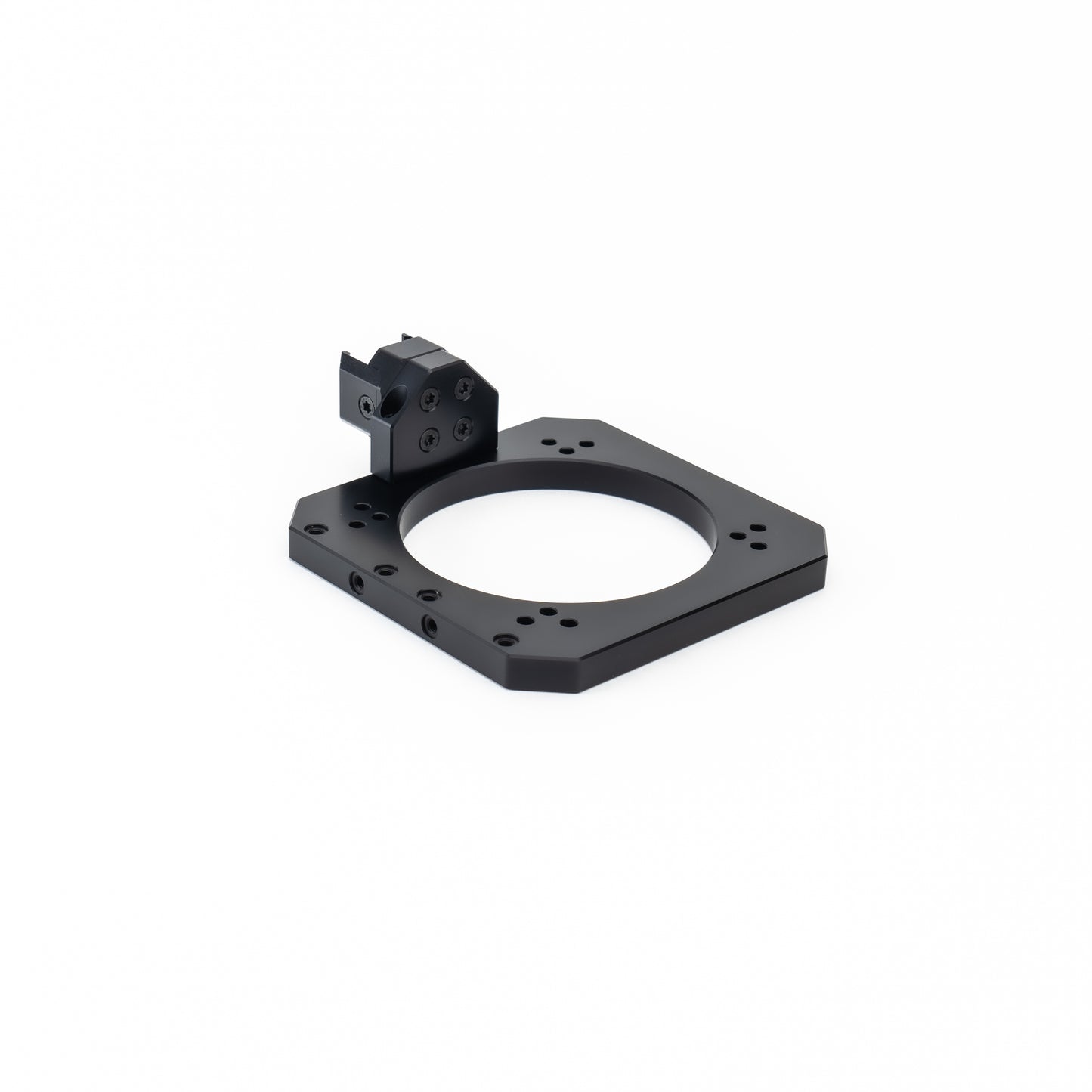

CORSAIR RESERVOIR MOUNT

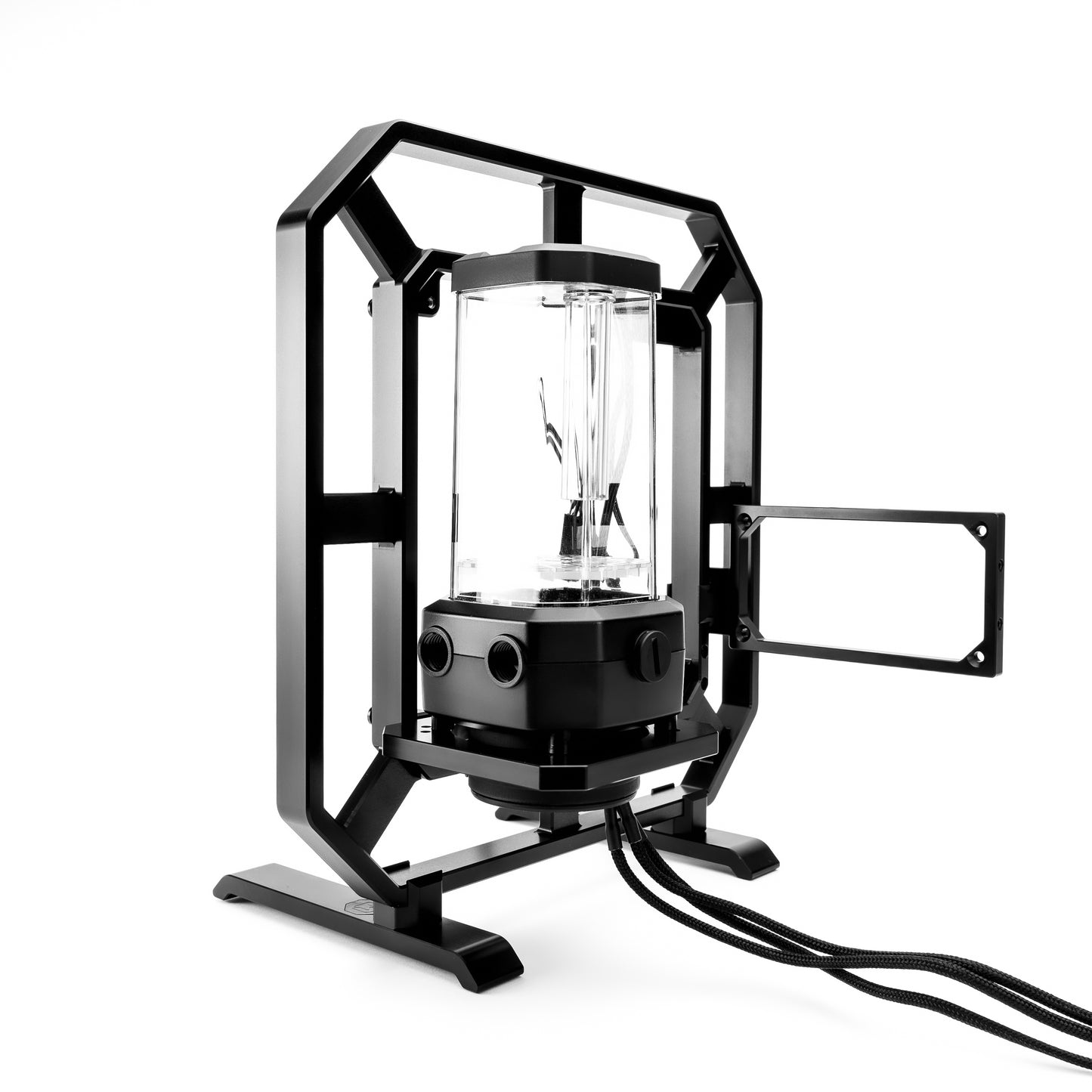

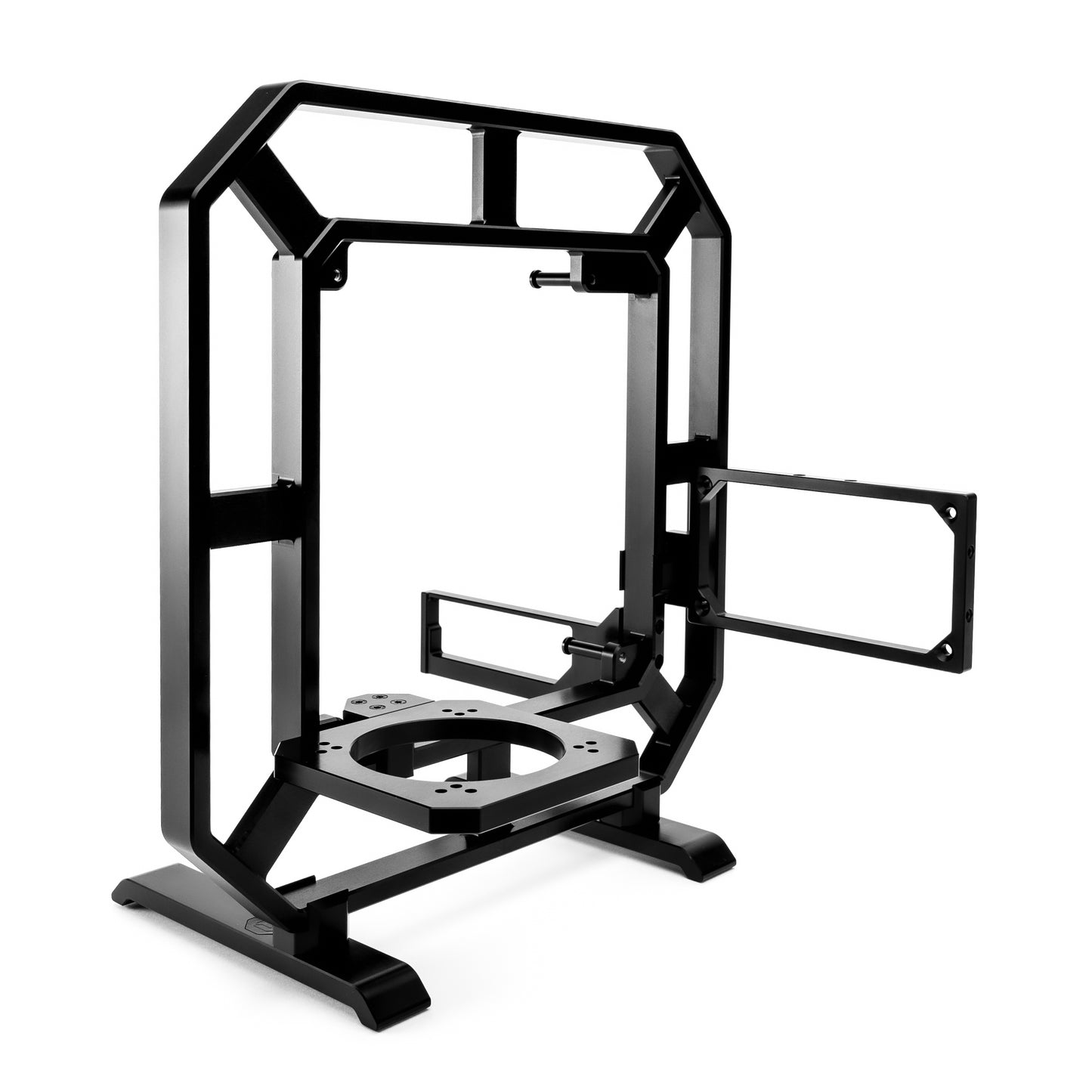

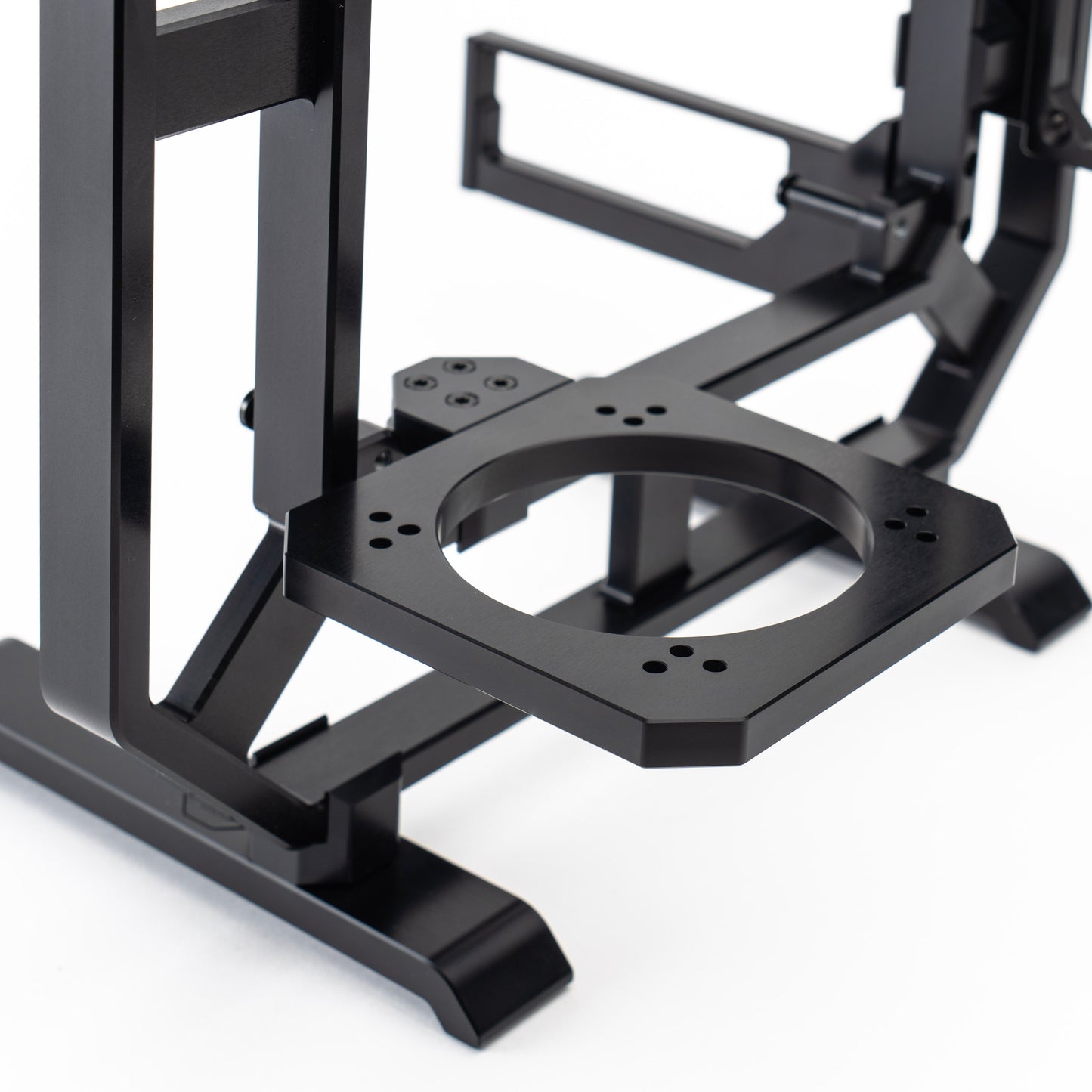

The CORSAIR Reservoir Mount is an assembly meticulously crafted to securely connect the reservoir to the main frame. It offers flexibility in attaching the reservoir to the frame rail from any side. Engineered to accommodate Hydro X Series XD5 RGB and iCUE LINK XD5 RGB ELITE (LCD) from CORSAIR, it boasts a hole arrangement ensuring compatibility. The structure is distinguished by exceptional rigidity and robustness.

Technical Details:

• Product Dimensions (W x H x D): 40 x 90 x 110 mm
• Color: Black Anodization
• Material: 6082 Aluminum, Steel (screws)

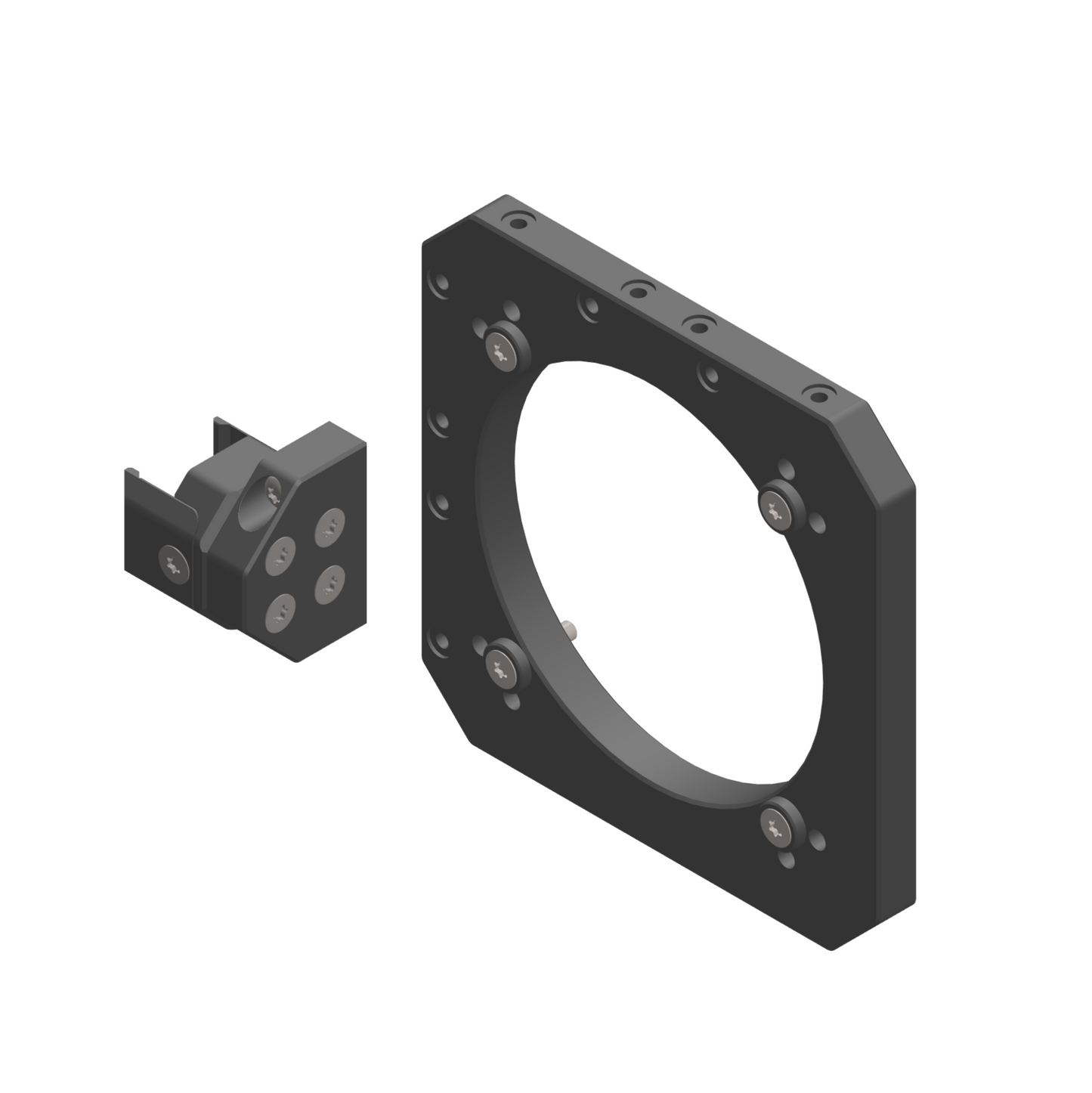

Delivery Scope:

• 1x CORSAIR Reservoir plate
• 1x Link (narrow)
• 1x SYS8 clamp assembly
• 11x Mounting screws
• 2x Slot cover
• 4x Washers

Supports:

• Hydro X Series XD5 RGB
• iCUE LINK XD5 RGB ELITE

• iCUE LINK XD5 RGB ELITE LCD

Important Notes:

• Product dimensions may vary depending on the setup.
• The product is just anodized, not sandblasted, to maintain tolerances. There can be slight variations in the anodization shade between parts. Machining marks may be visible.

Instructions:

• For additional guidance, refer to the instructional Video. (Coming soon, contact us for any questions.)
