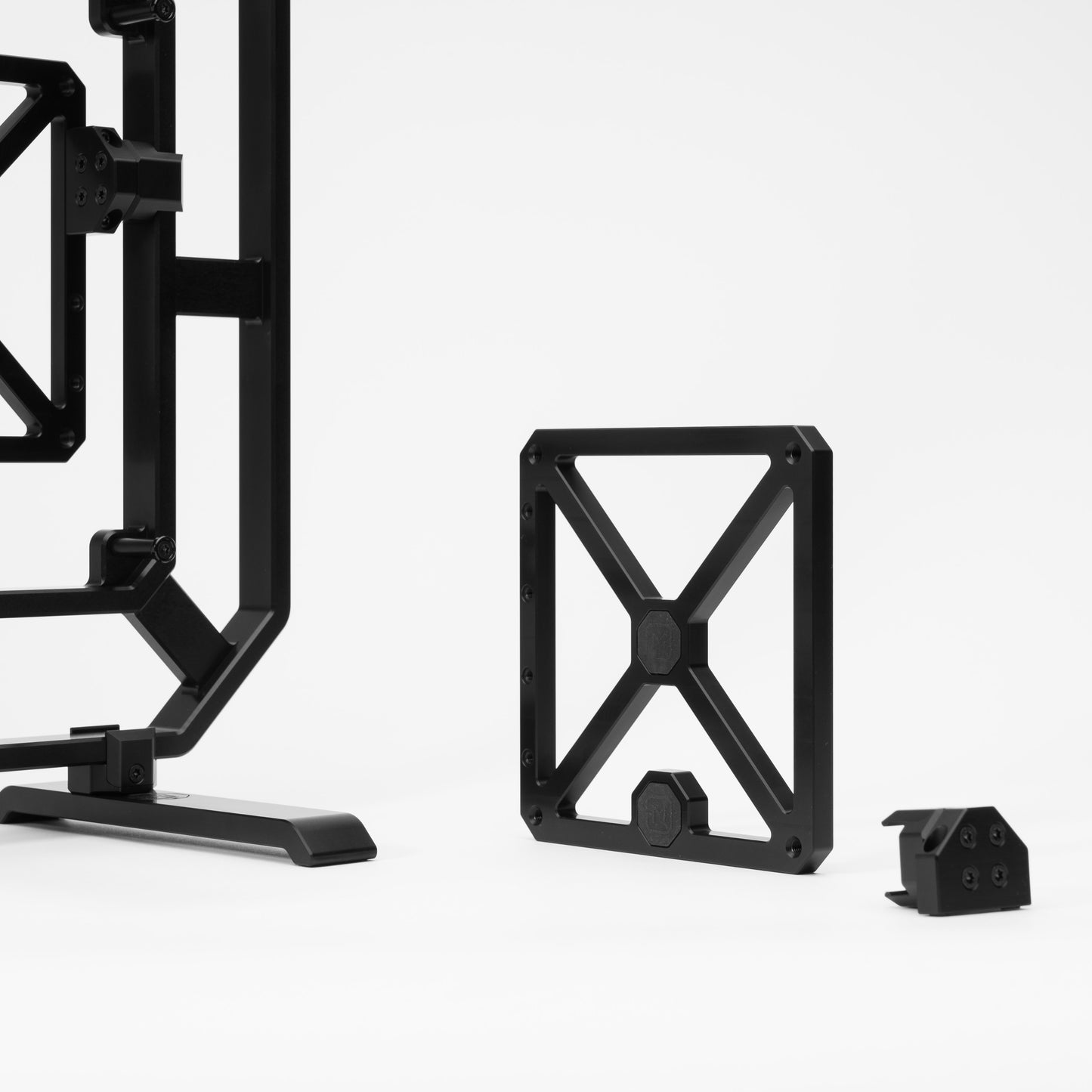

120 UNI RESERVOIR MOUNT

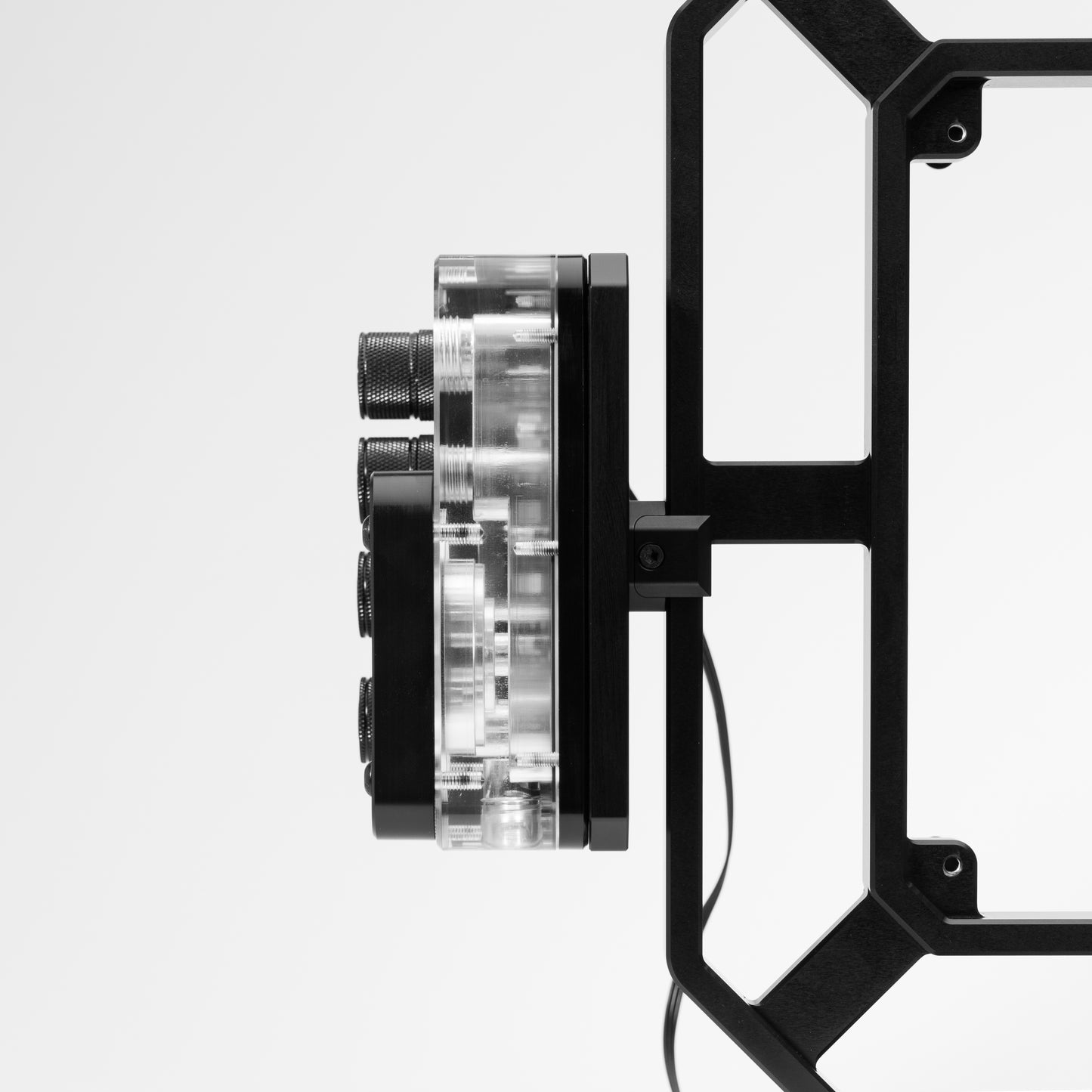

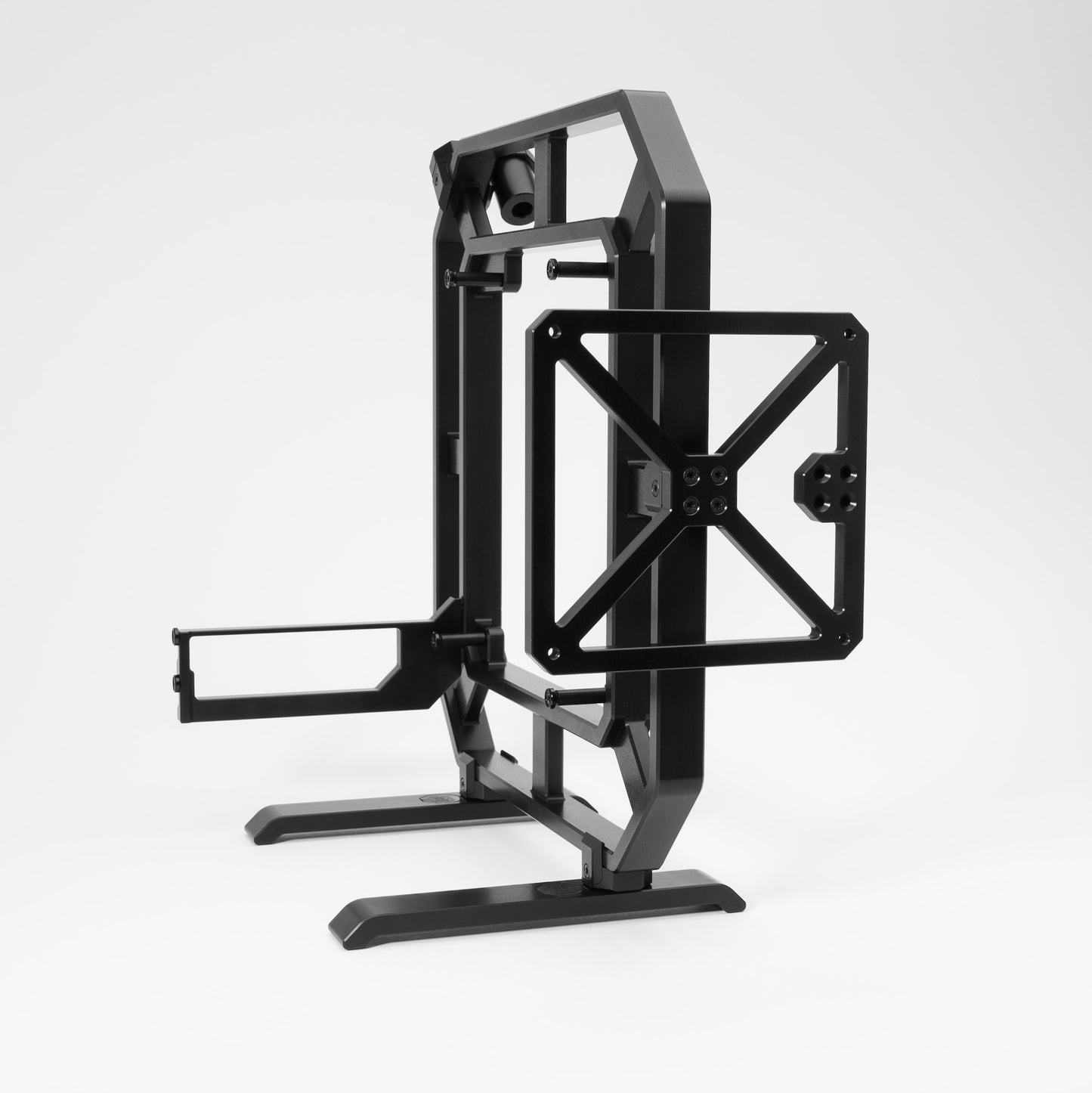

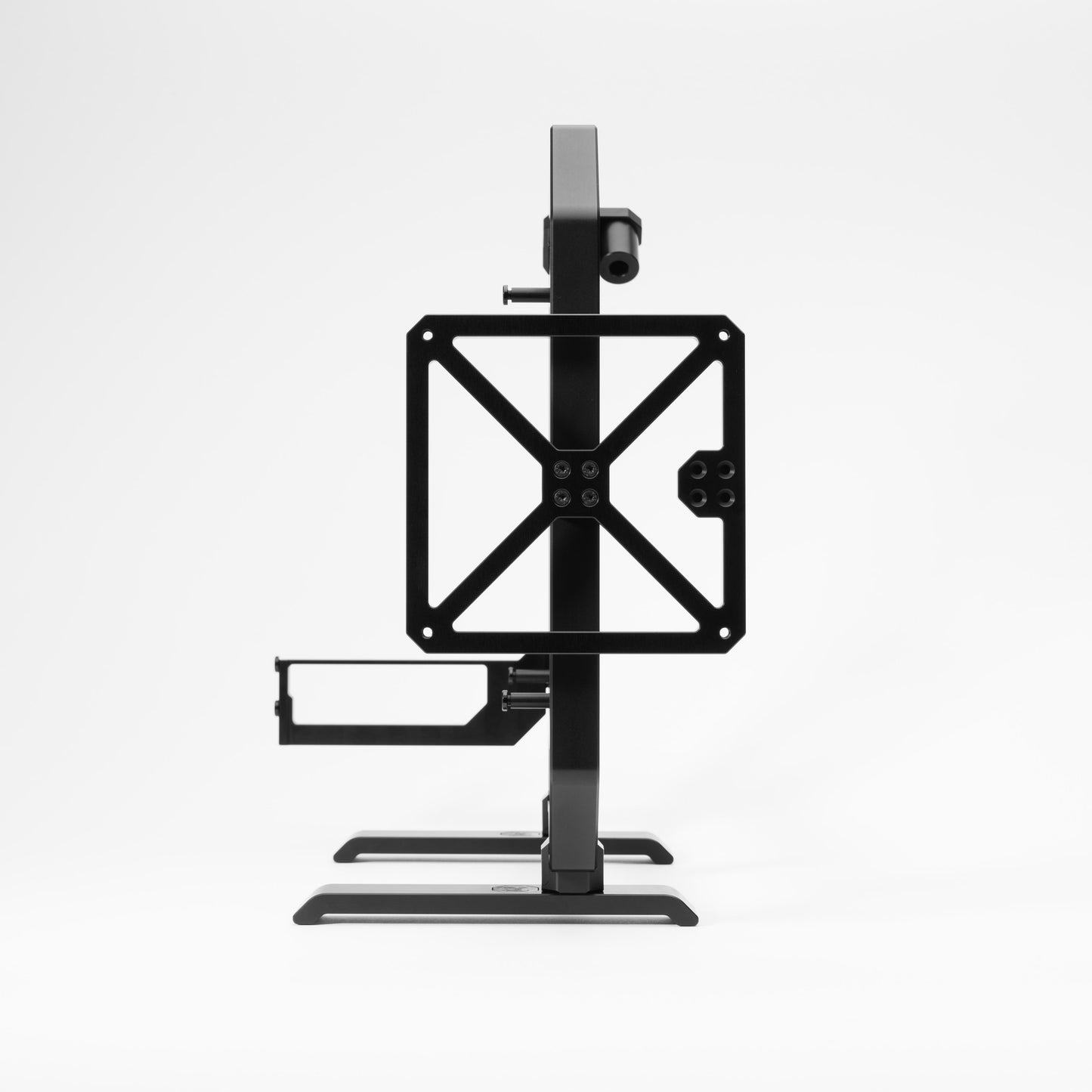

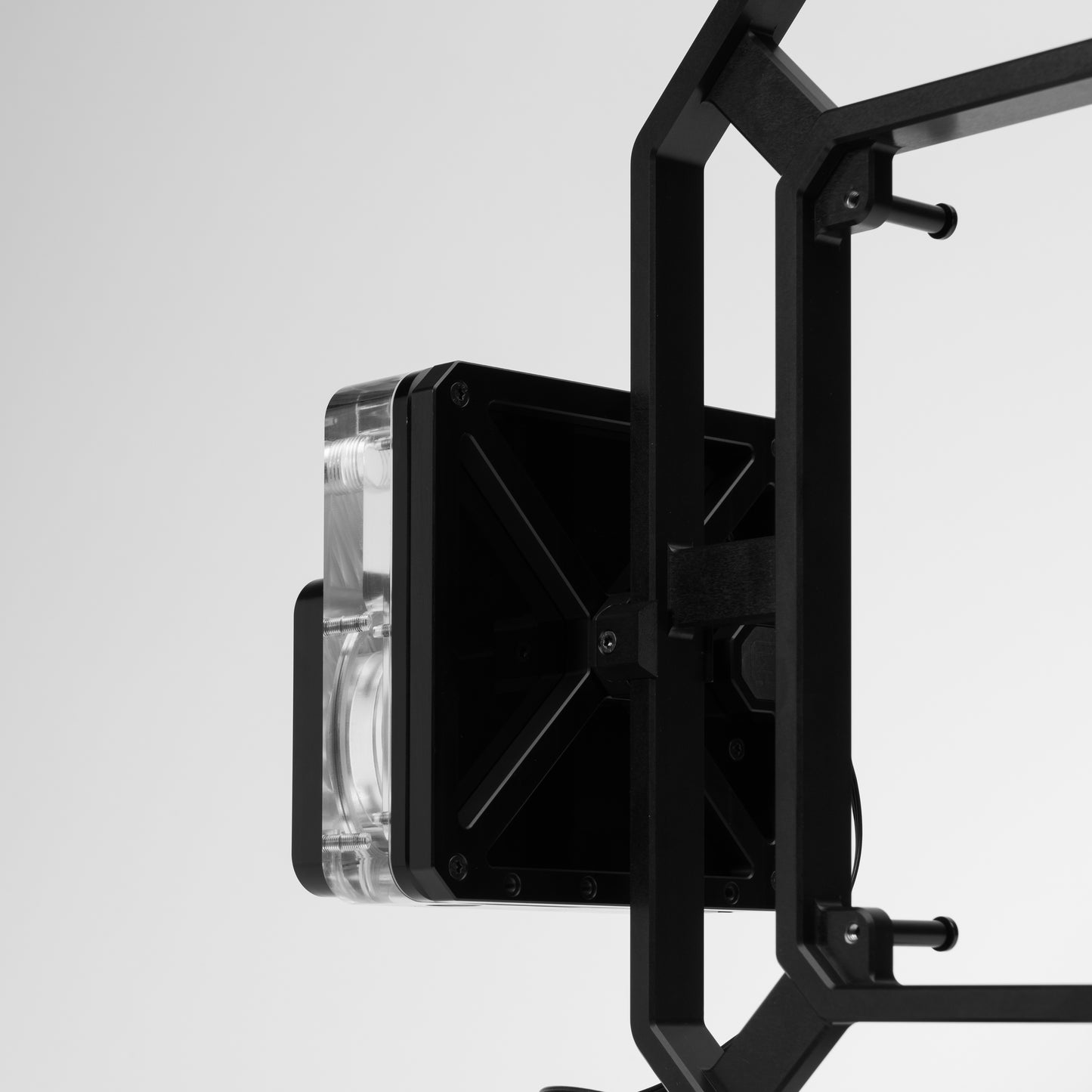

The 120 UNI Reservoir Mount is an assembly meticulously crafted to securely connect the reservoir to the main frame. It offers flexibility in attaching the reservoir to the frame rail from any side. Engineered to accommodate UNI 120D from Stealkeycustoms and EK-Quantum Kinetic FLT 120 D5/DDC from EKWB, it boasts a hole arrangement ensuring compatibility. The structure is distinguished by exceptional rigidity and robustness.

Technical Details:

• Product Dimensions (W x H x D): 40 x 120 x 120 mm
• Color: Black Anodization
• Material: 6082 Aluminum, Steel (screws), TPE 60A (slot cover)

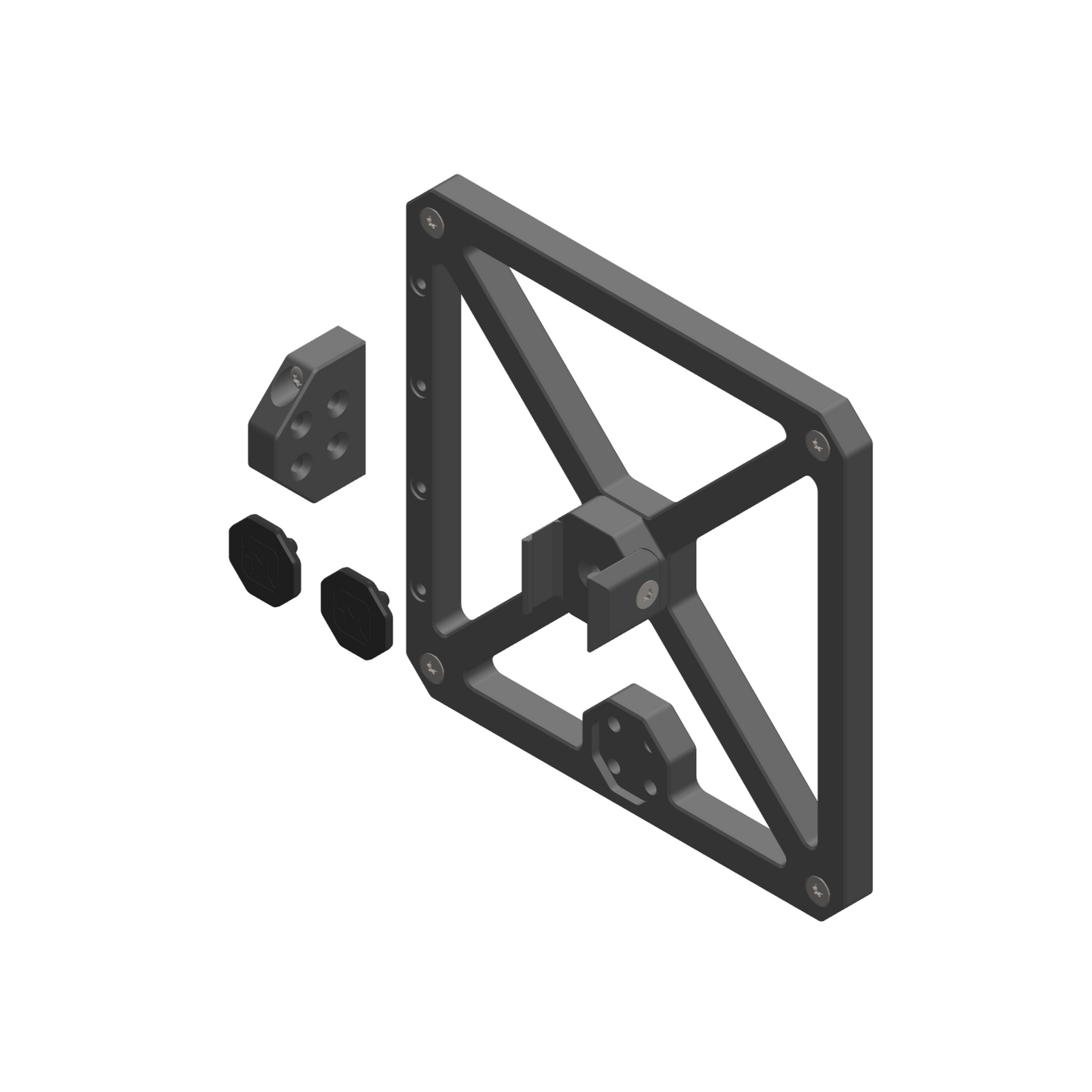

Delivery Scope:

• 1x 120 UNI Reservoir plate
• 1x Link (narrow)
• 1x SYS8 clamp assembly
• 2x Slot cover
• 17x Mounting screws

Supports:

• UNI 120D (Stealkeycustoms)

• EK-Quantum Kinetic FLT 120 D5/DDC (EKWB)

Important Notes:

• Product dimensions may vary depending on the setup.
• The product is just anodized, not sandblasted, to maintain tolerances. There can be slight variations in the anodization shade between parts. Machining marks may be visible.

 Instructions:

• For additional guidance, refer to the instructional Video. (Coming soon, contact us for any questions.)
