RADIATOR MOUNT 140

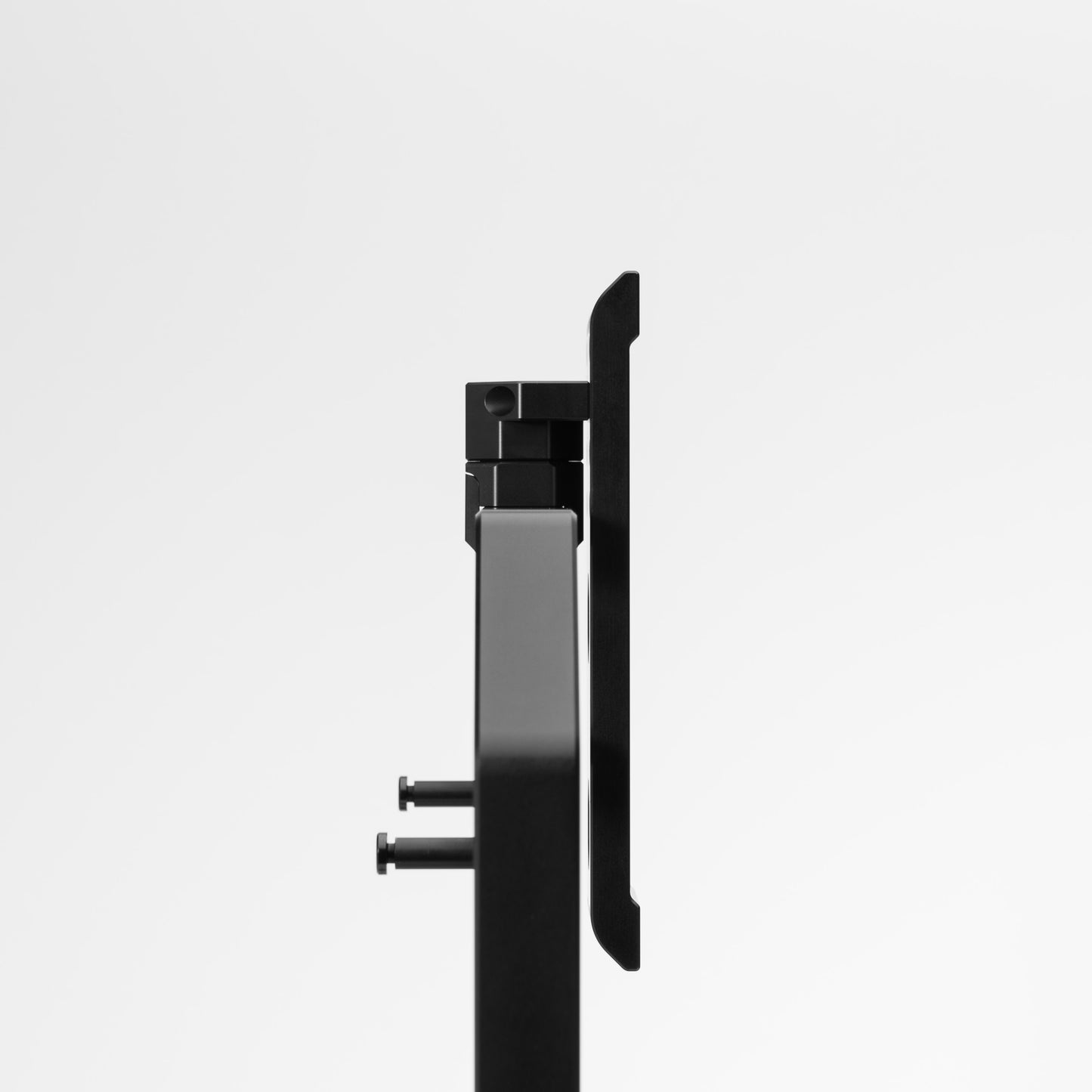

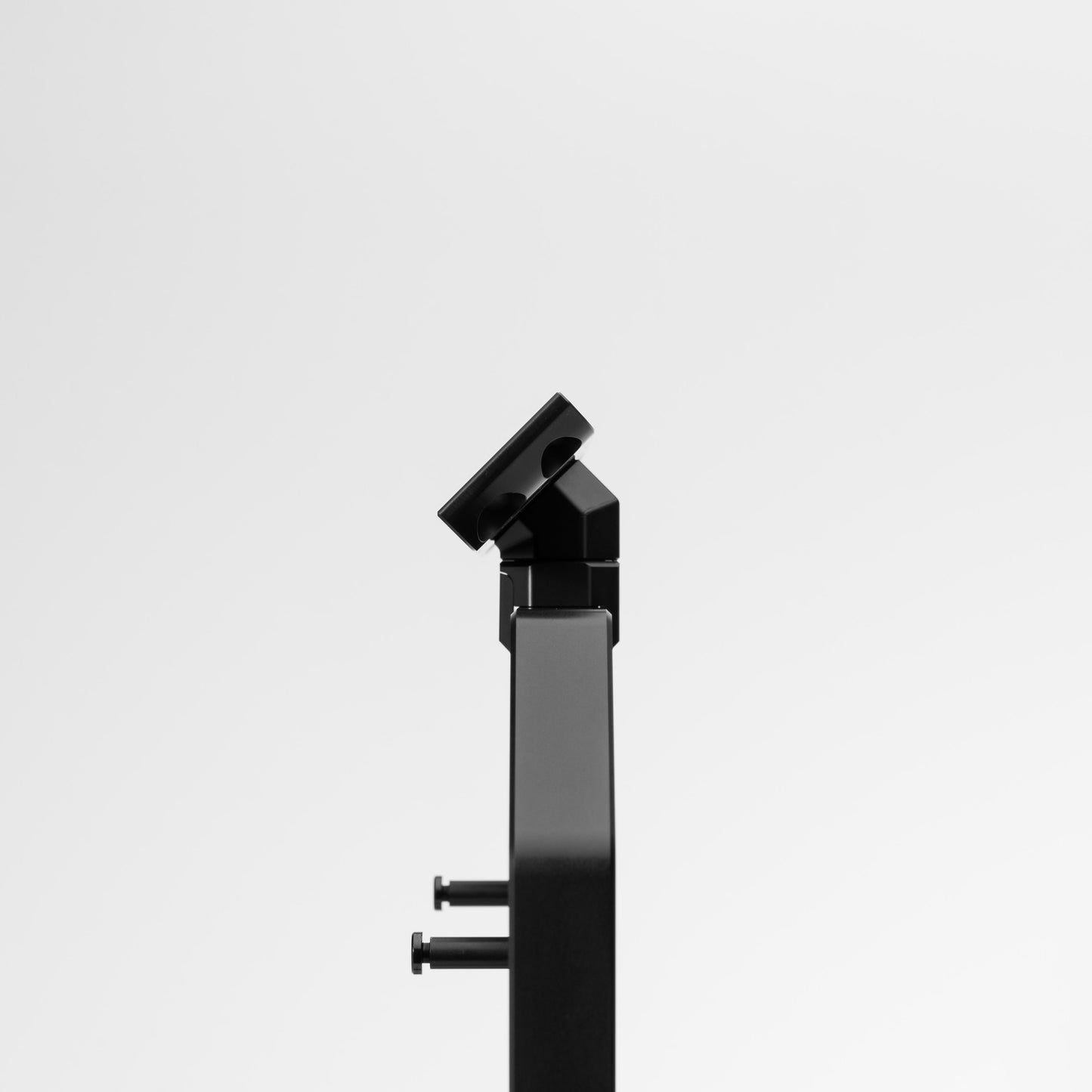

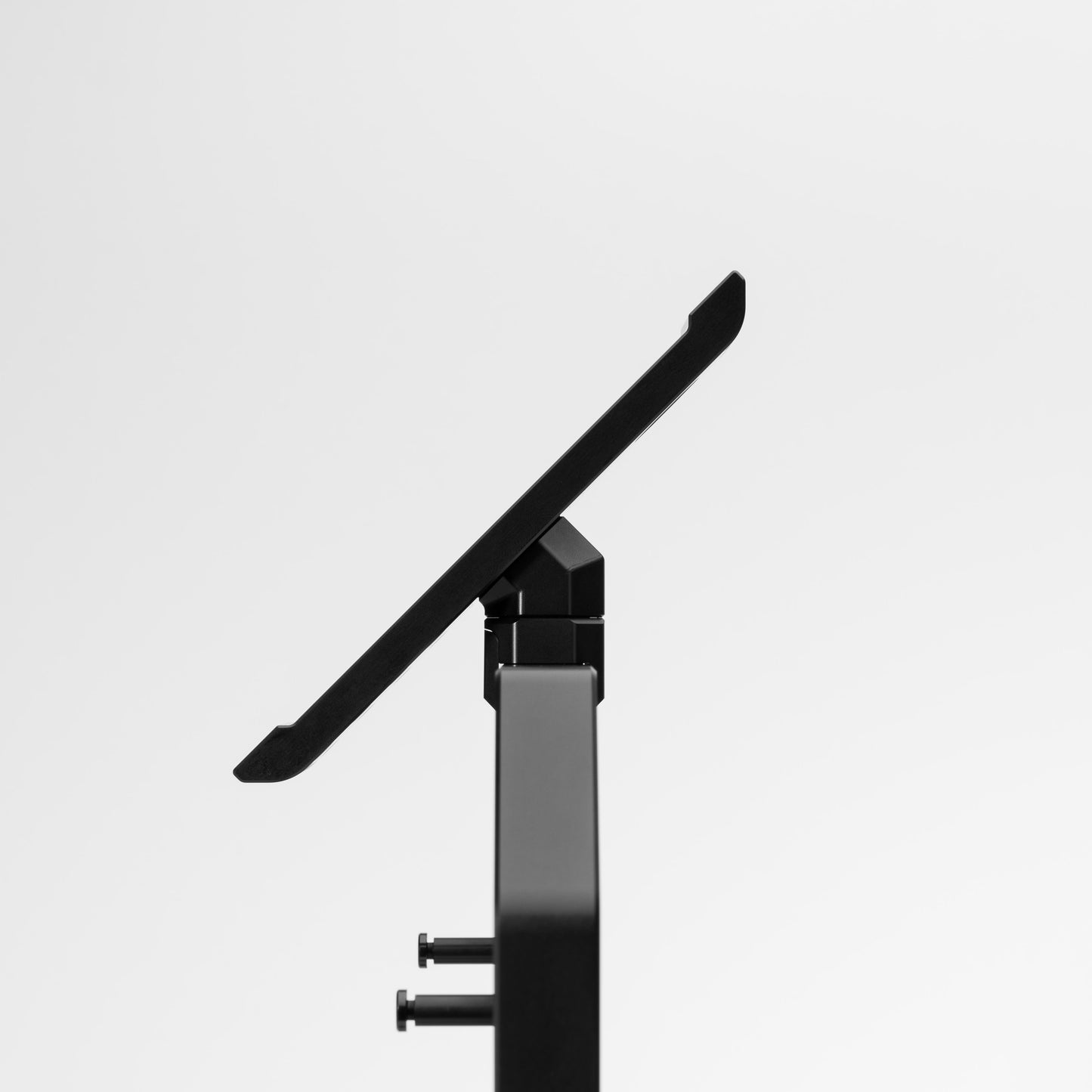

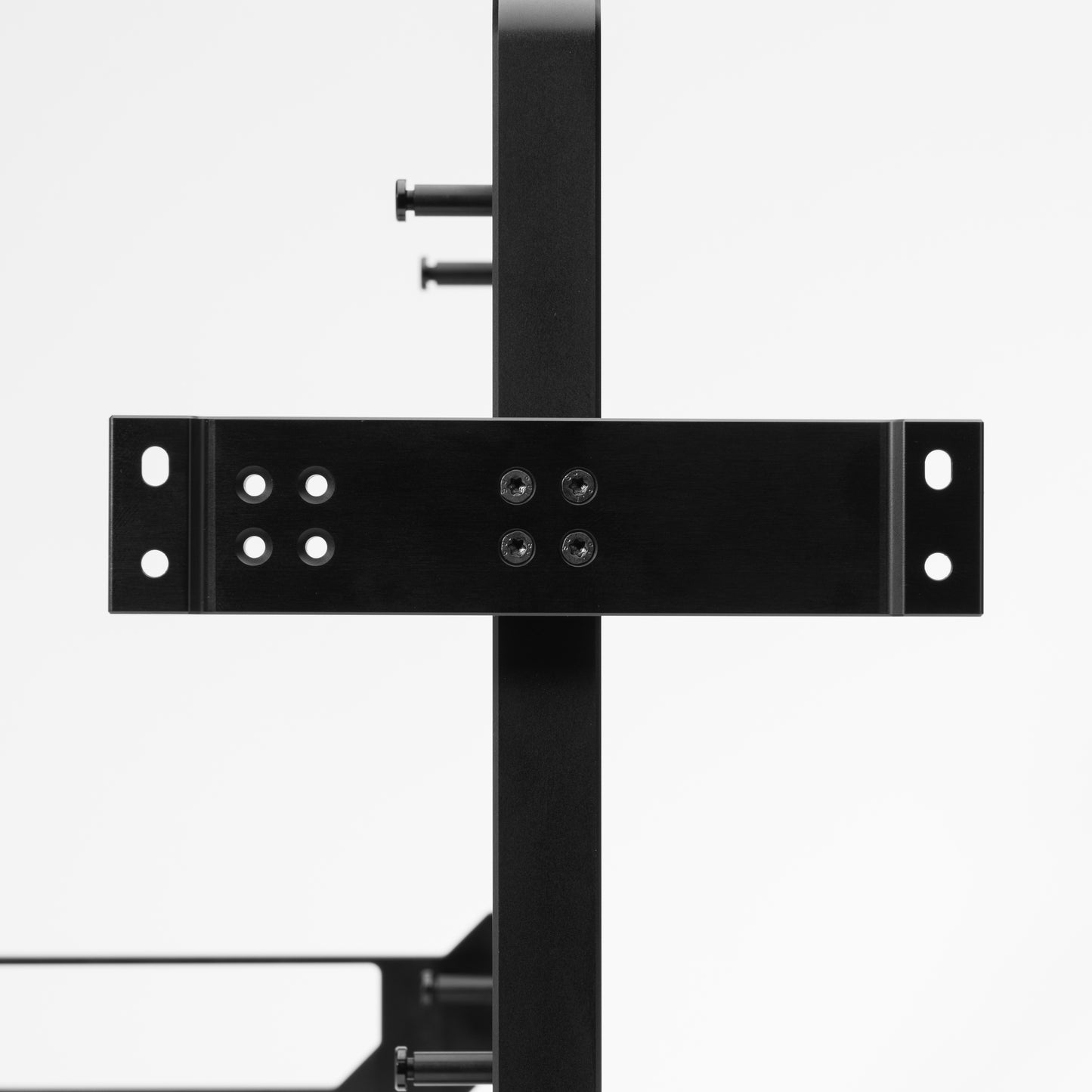

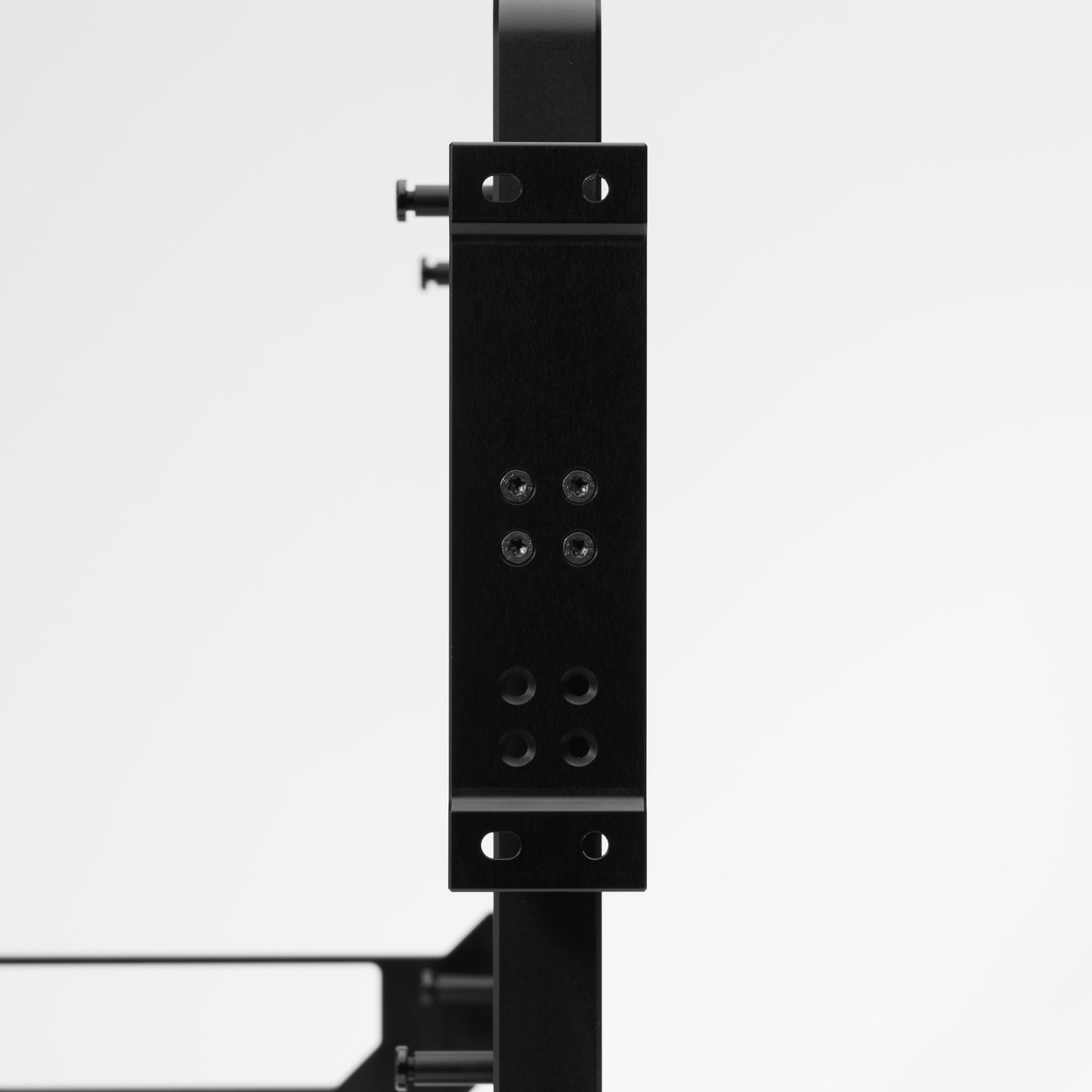

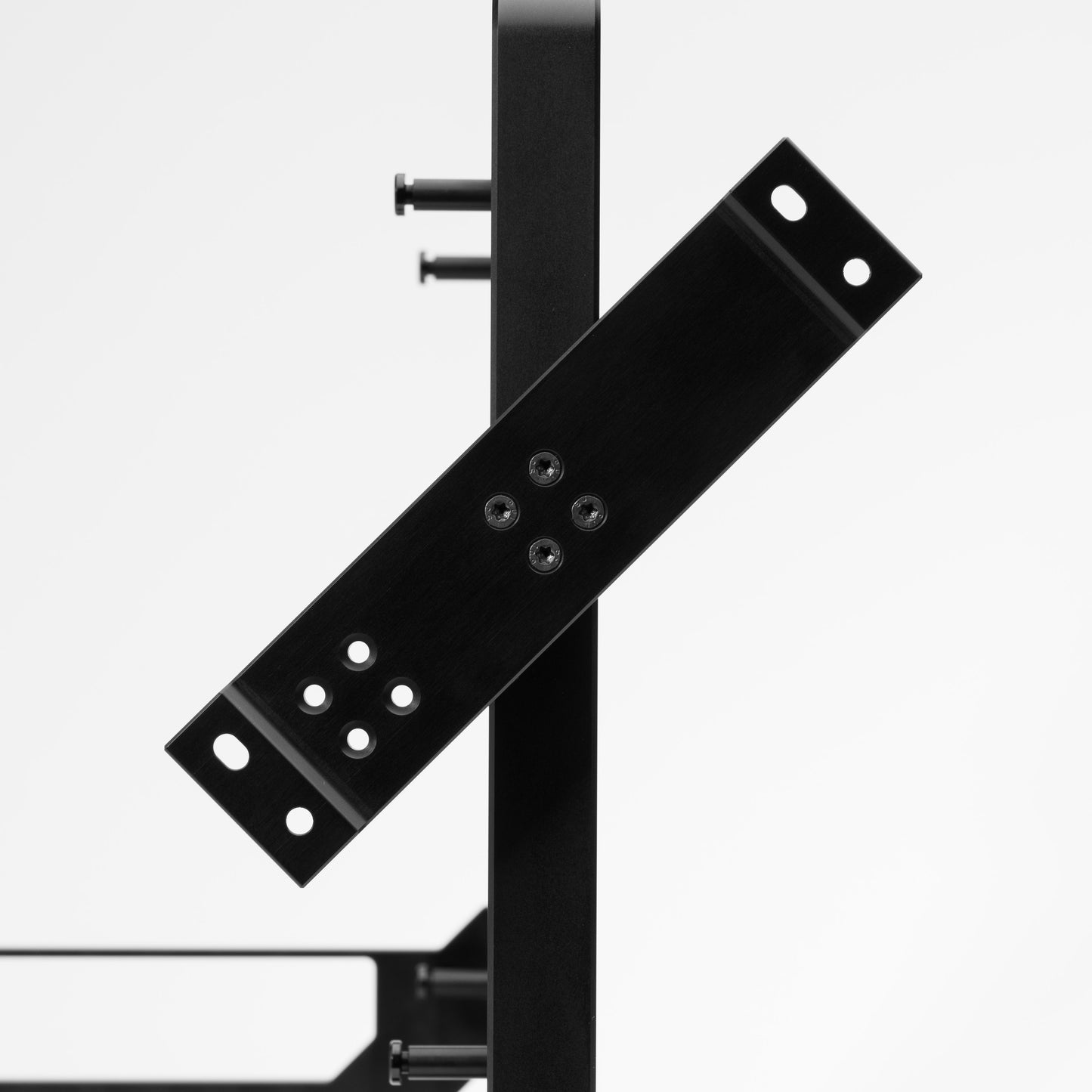

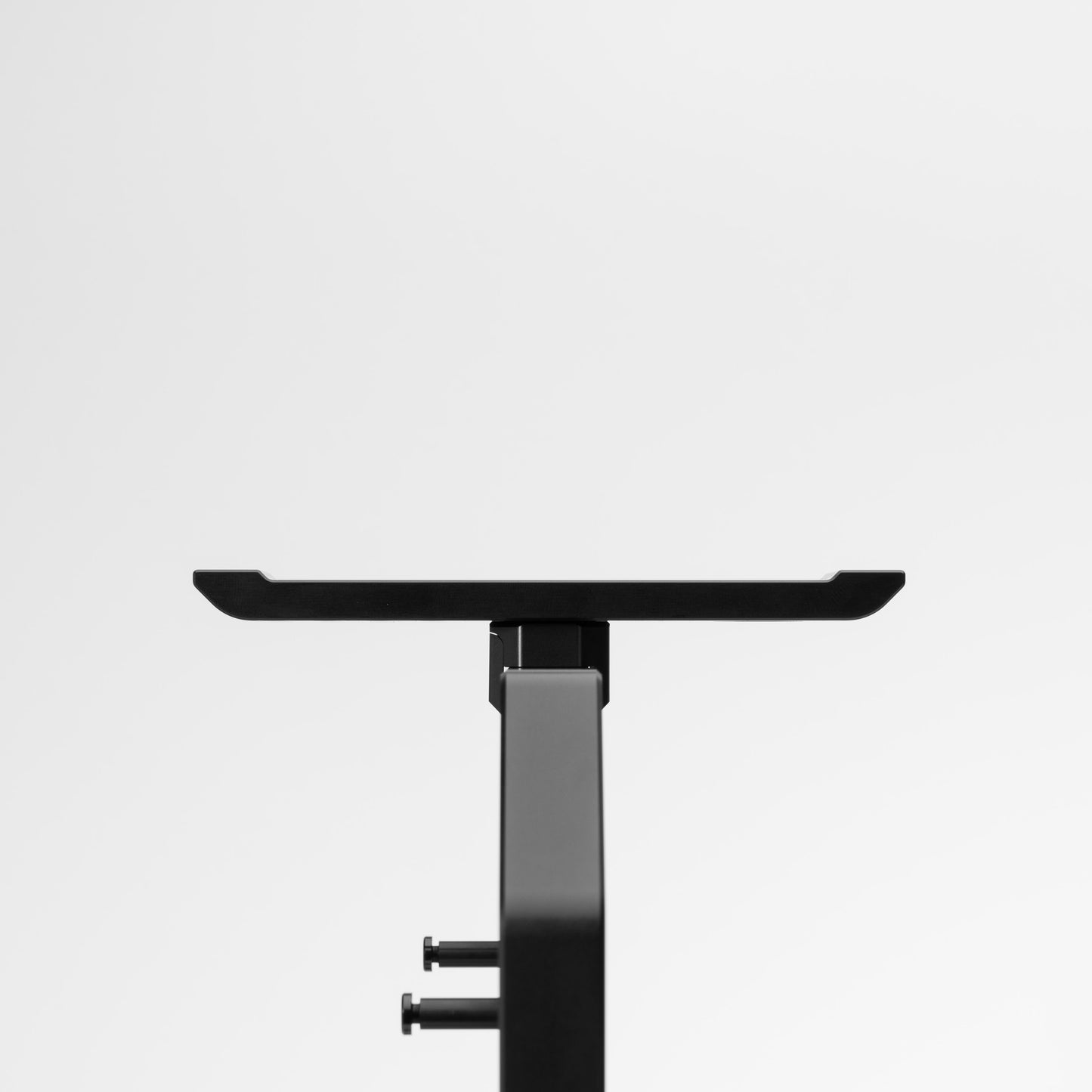

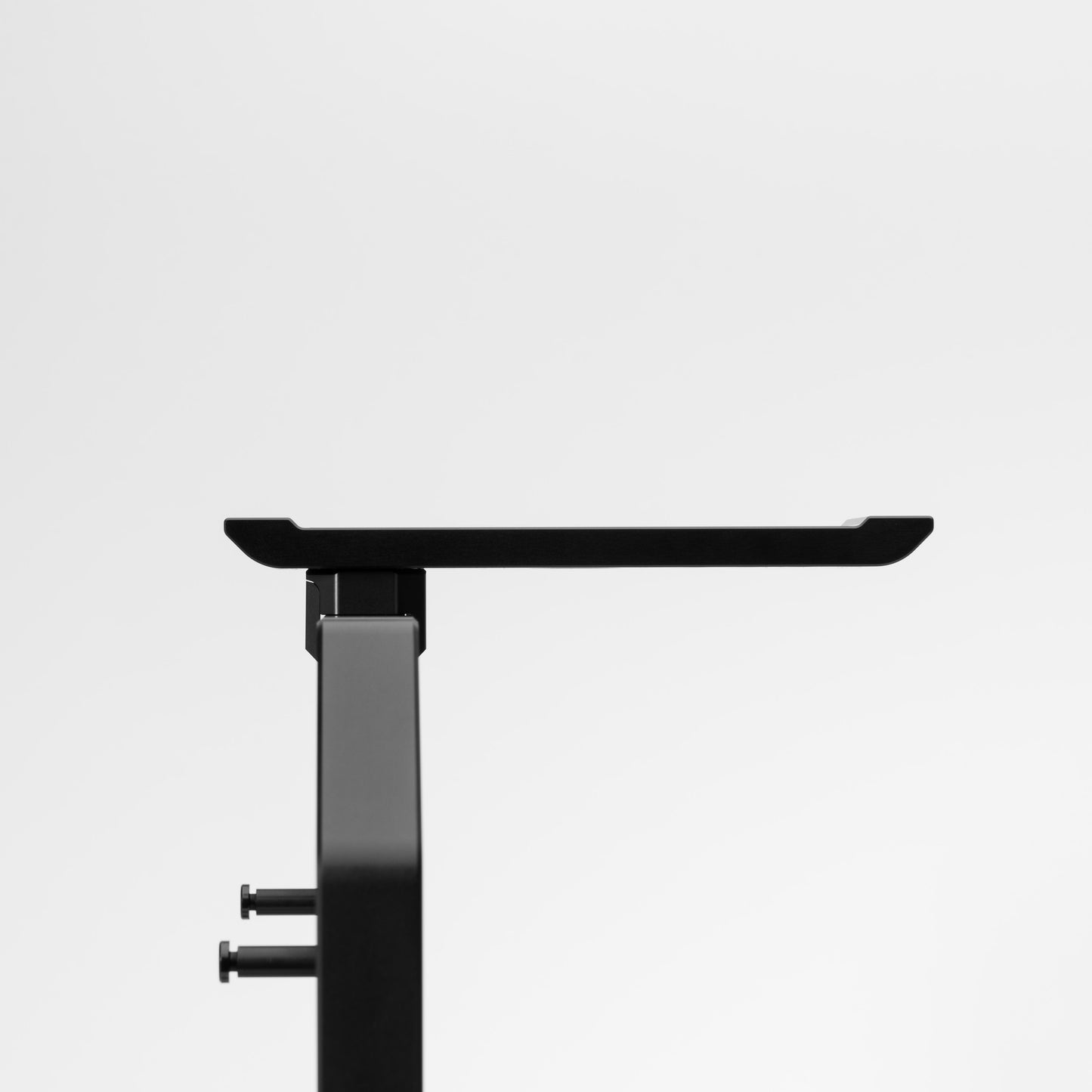

SYS8 Radiator Mount 140 is a assembly designed to securely connect the radiator to the main frame. It provides flexibility in attaching the radiator to the frame rail from any side and at any angle (45-degree increments). This assembly is engineered to accommodate most radiators from renowned manufacturers, thanks to its standardized hole arrangement, ensuring compatibility. The structure is characterized by exceptional rigidity and robustness.

Technical details:

• Product dimensions (W x H x D): 32 x 40 x 140 mm
• Color: Black Anodization
• Material: 6082 aluminum, Steel (screews), TPE 60A (slot cover)

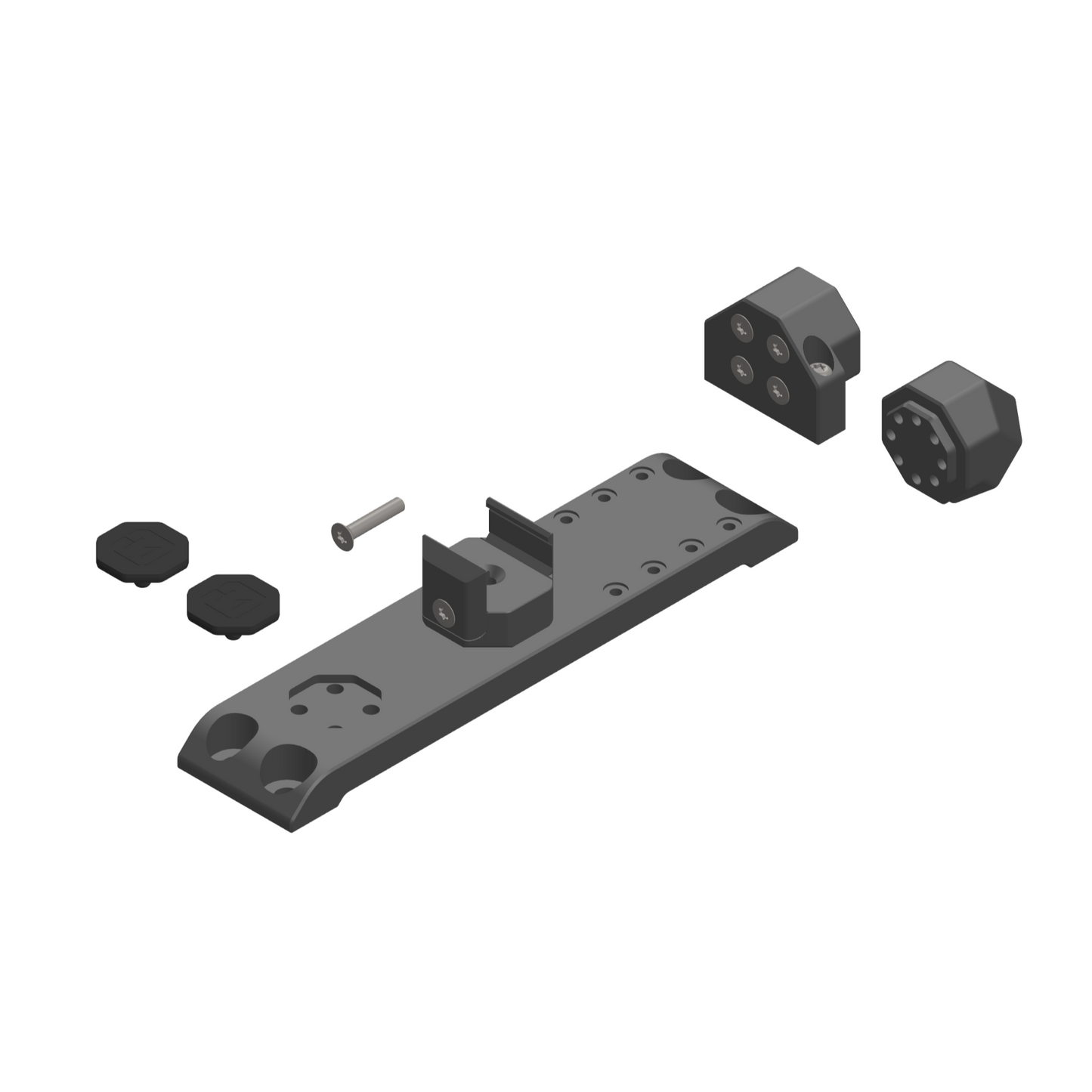

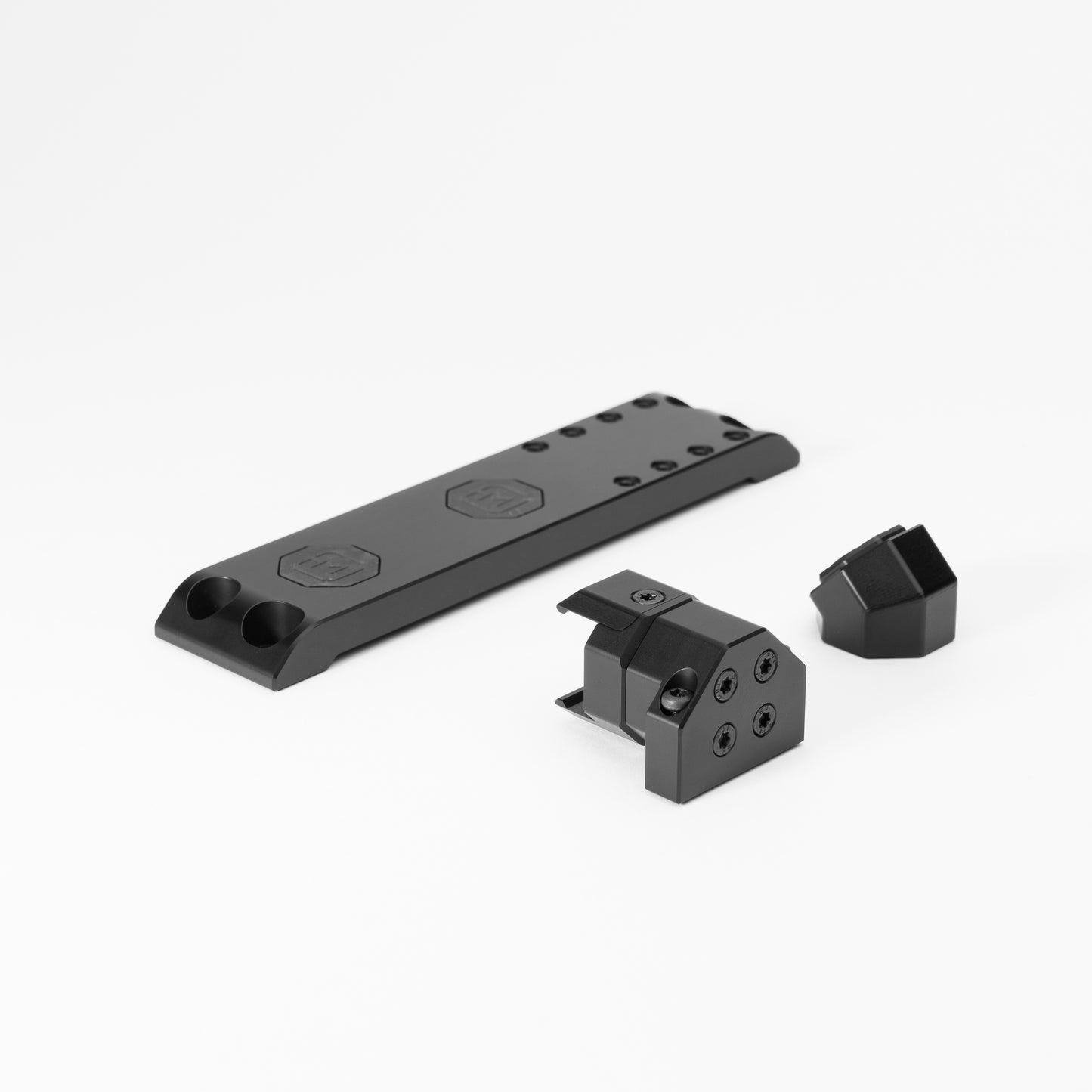

Delivery scope:

• 1x RAD 140 bracket
• 1x Link (Wide)
• 1x 45-degree angle spacer
• 1x SYS8 clamp assembly
• 2x Slot cover
• 12x Mounting screws


Supports:

• 280 radiator

• 420 radiator


Important Notes:

• Screws for connecting to the radiator are not included. Please use appropriate screws based on your radiator model; usually, they come with the radiator.
• Product dimensions may vary depending on the setup.
• The product is just anodized, not sandblasted, to maintain tolerances. There can be slight variations in the anodization shade between parts. Machining marks may be visible.

Instruction:

• For additional guidance, refer to the instructional Video. (Coming soon, contact us for any questions.)
