SYS8 BASIC KIT

SYS8 BASIC KIT

ZXP281

€291,90 EUR
€389,00 EUR €291,90 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

1 in stock

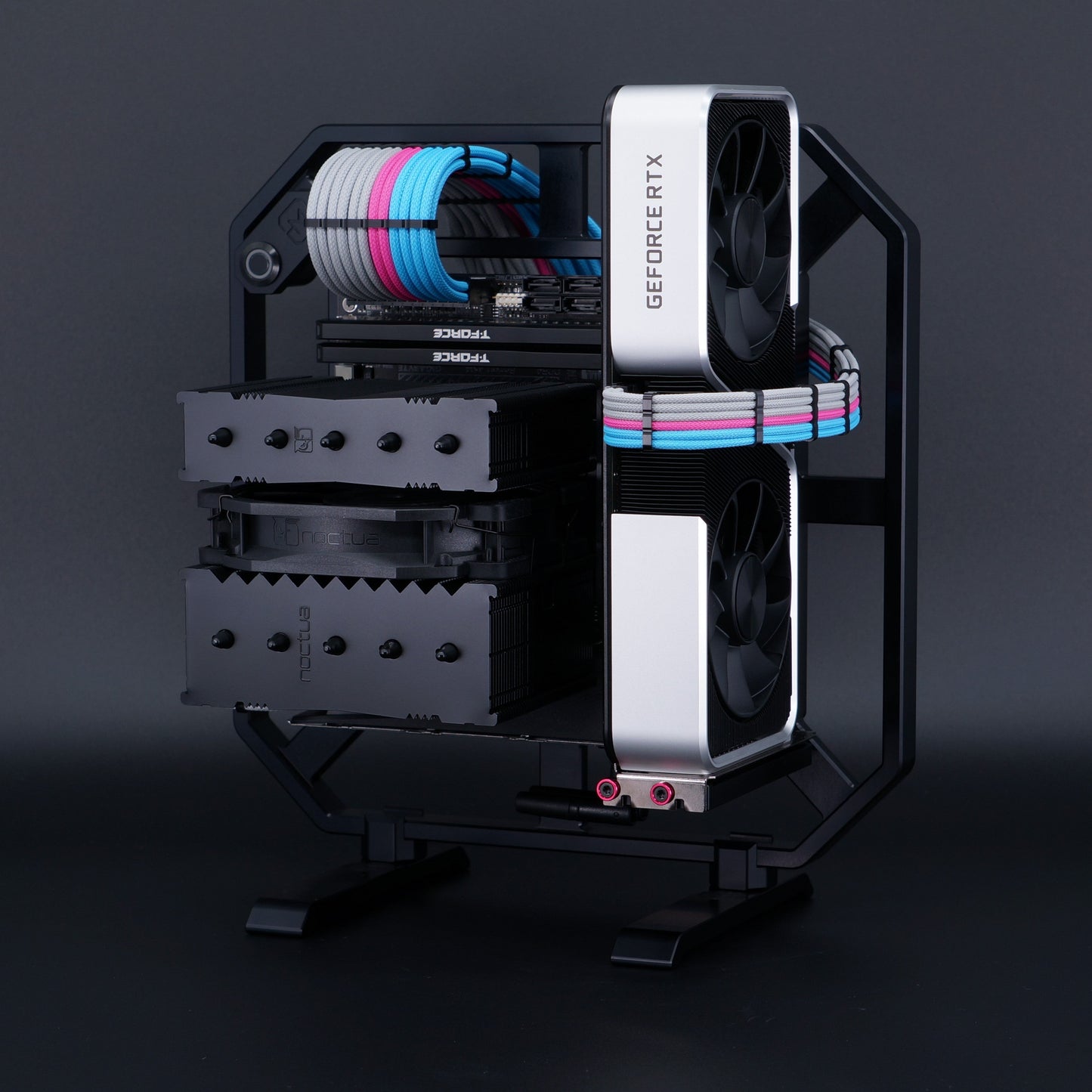

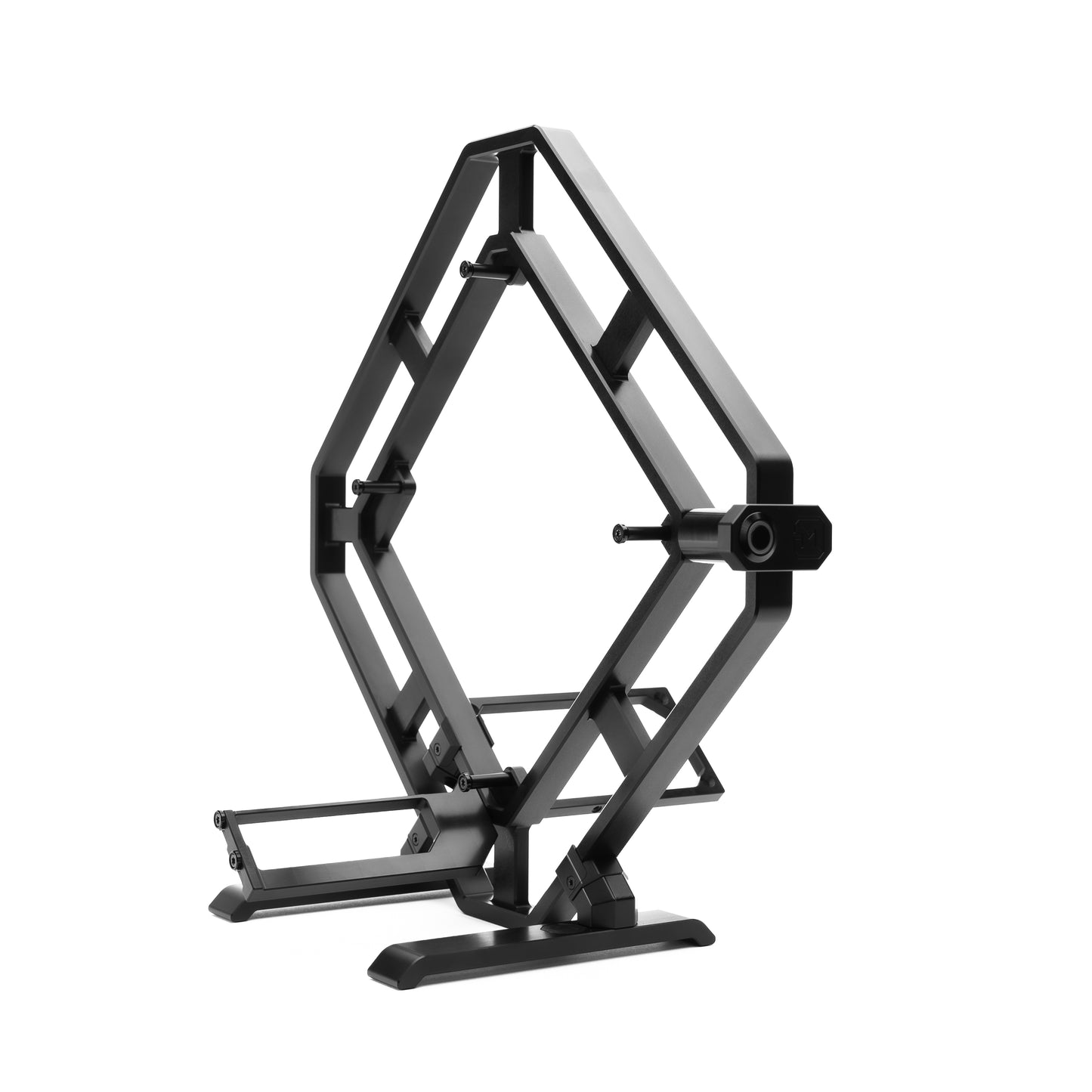

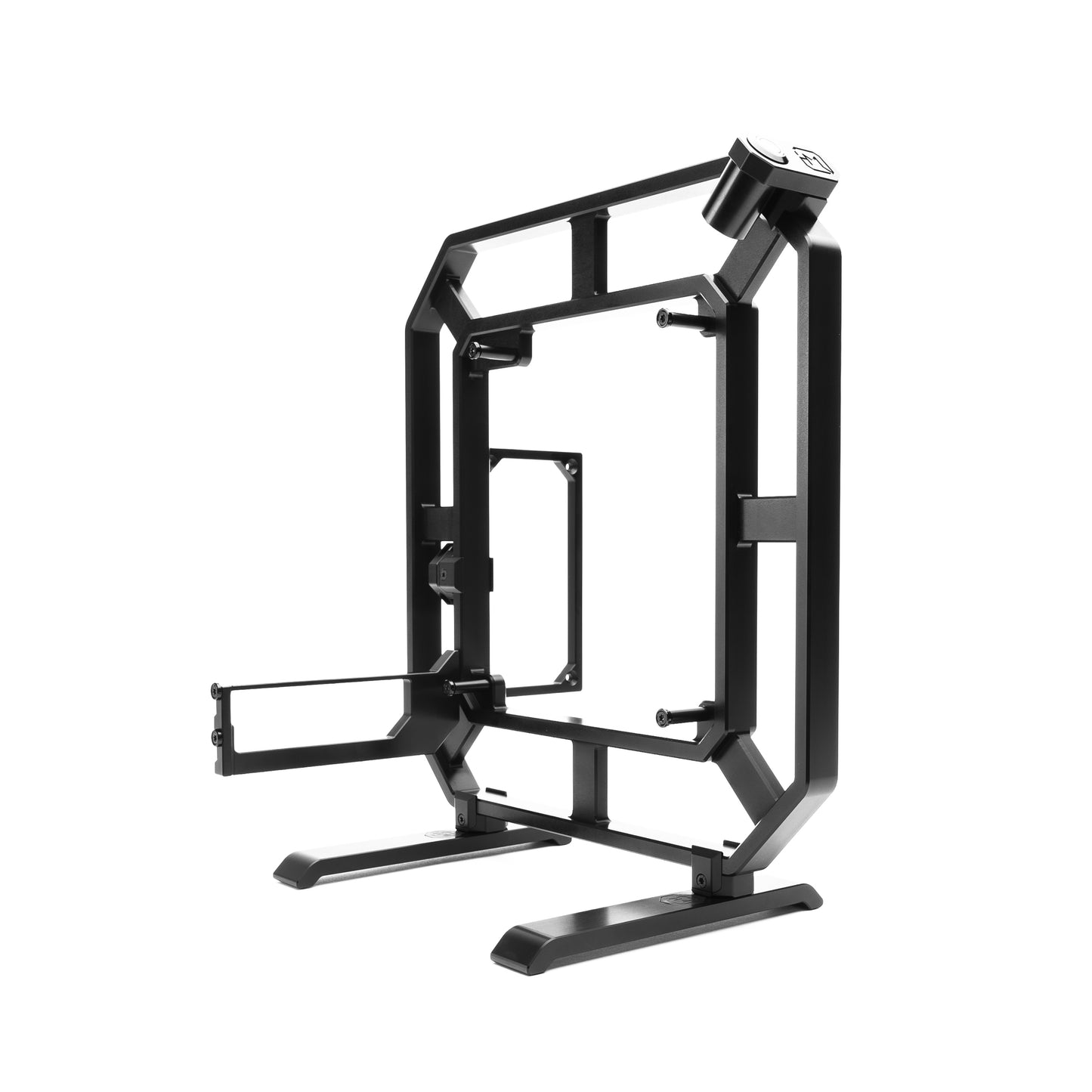

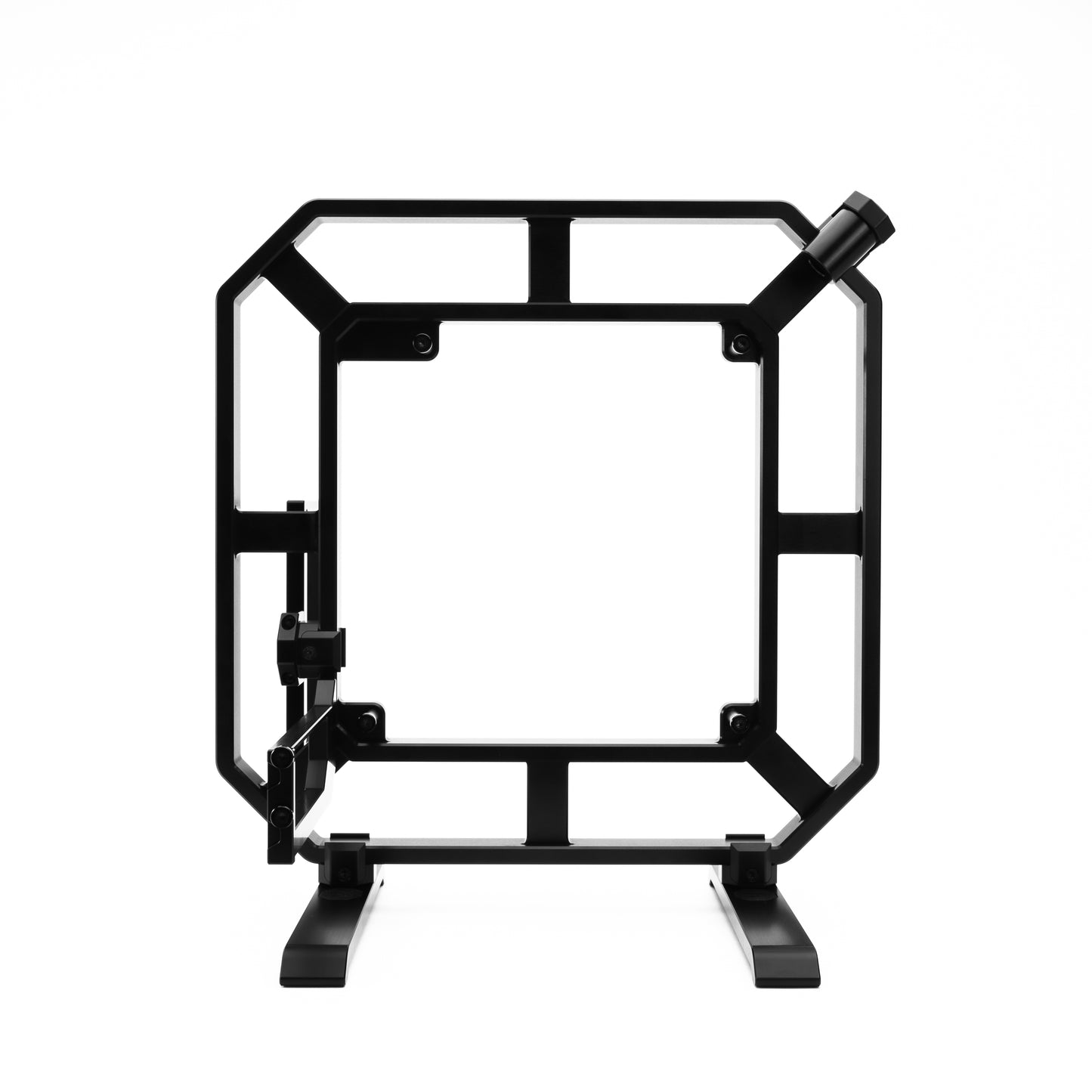

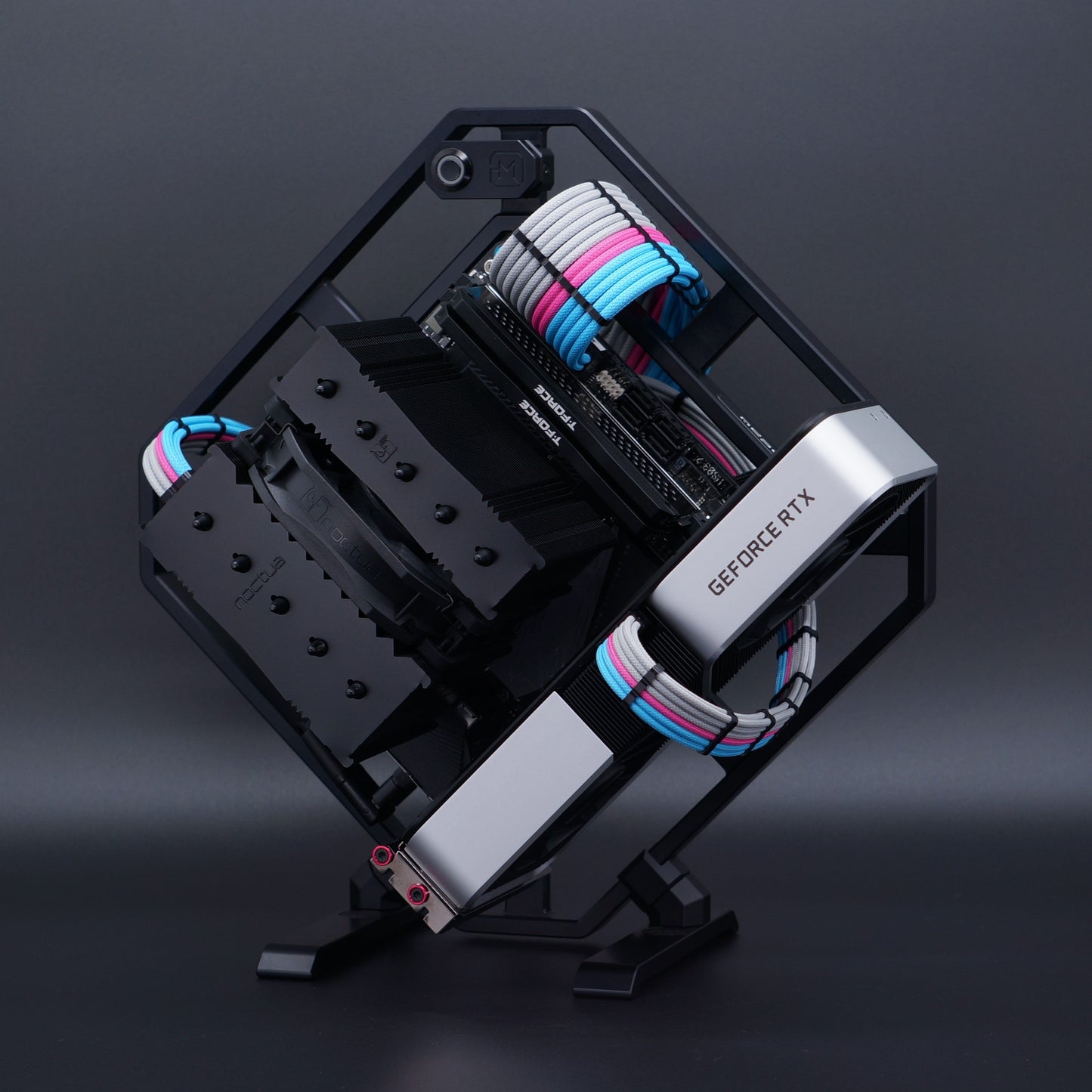

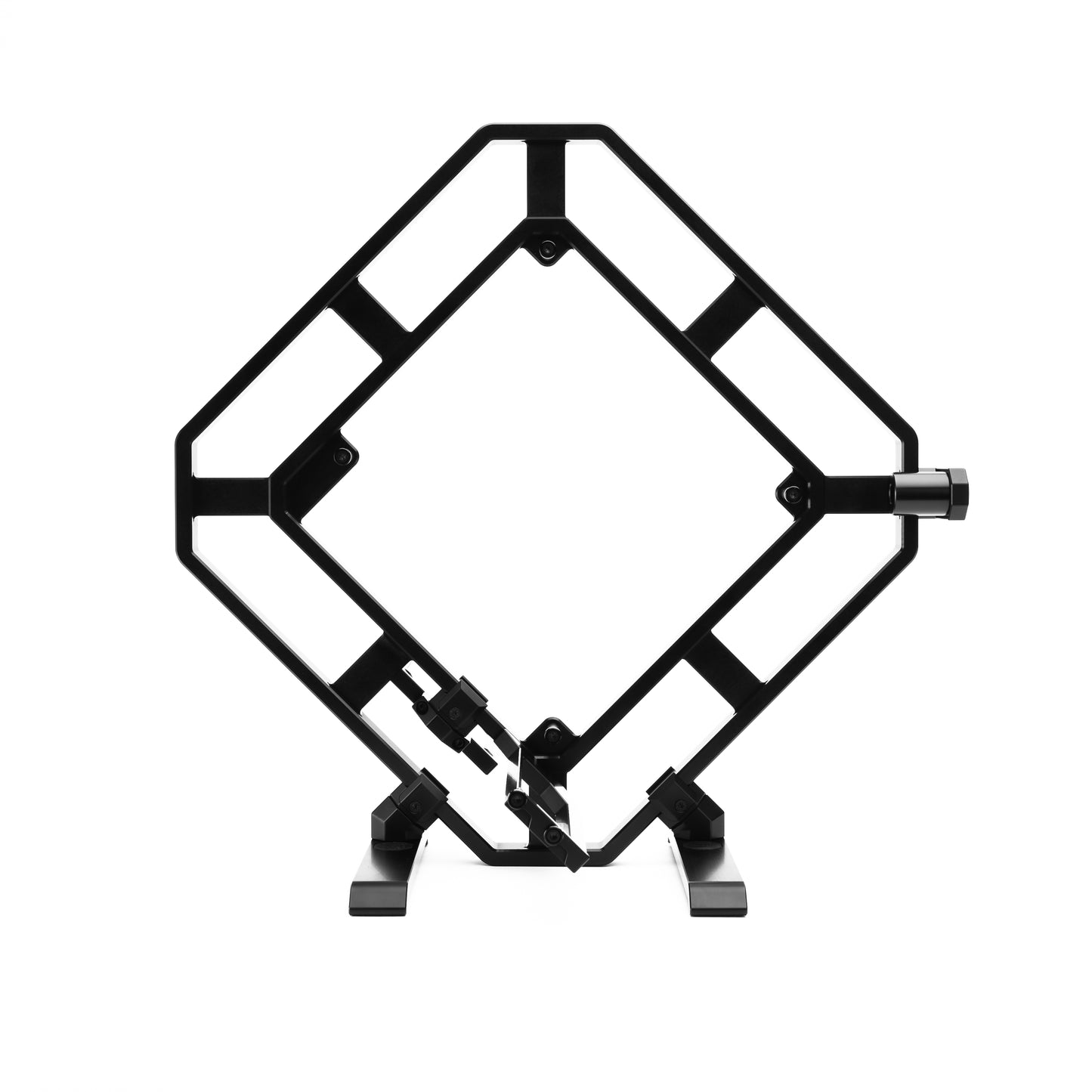

SYS8 BASIC KIT is the foundation of a high-performance ITX computer build. Not only does it look great, but it's also modular, rigid and aesthetically refined. It offers advanced customization and is designed with a simple build process in mind. The core component is an octagonal-shaped frame, engineered to accommodate various positions thanks to a unique rail system, which can hold the SYS8 CLAMP with various holders, brackets, spacers, links and legs. The main structure is CNC machined from a single block of aluminum designated 6082, along with other components (accessories).

The kit includes everything needed to assemble an Air-cooled computer system and serves as the basic unit for building an AIO or Custom loop. Various components (accessories), such as the Radiator Mount, Reservoir Mount, etc., are available separately in the SYS8 accessories section, allowing you to choose according to your needs and component size.

 Details:

      • The SYS8 Clamp allows you to rotate each component at four different angles (0, 45, 90 and 180 degrees). It is the main connection between the frame and various holders, brackets, spacers, links, and legs.

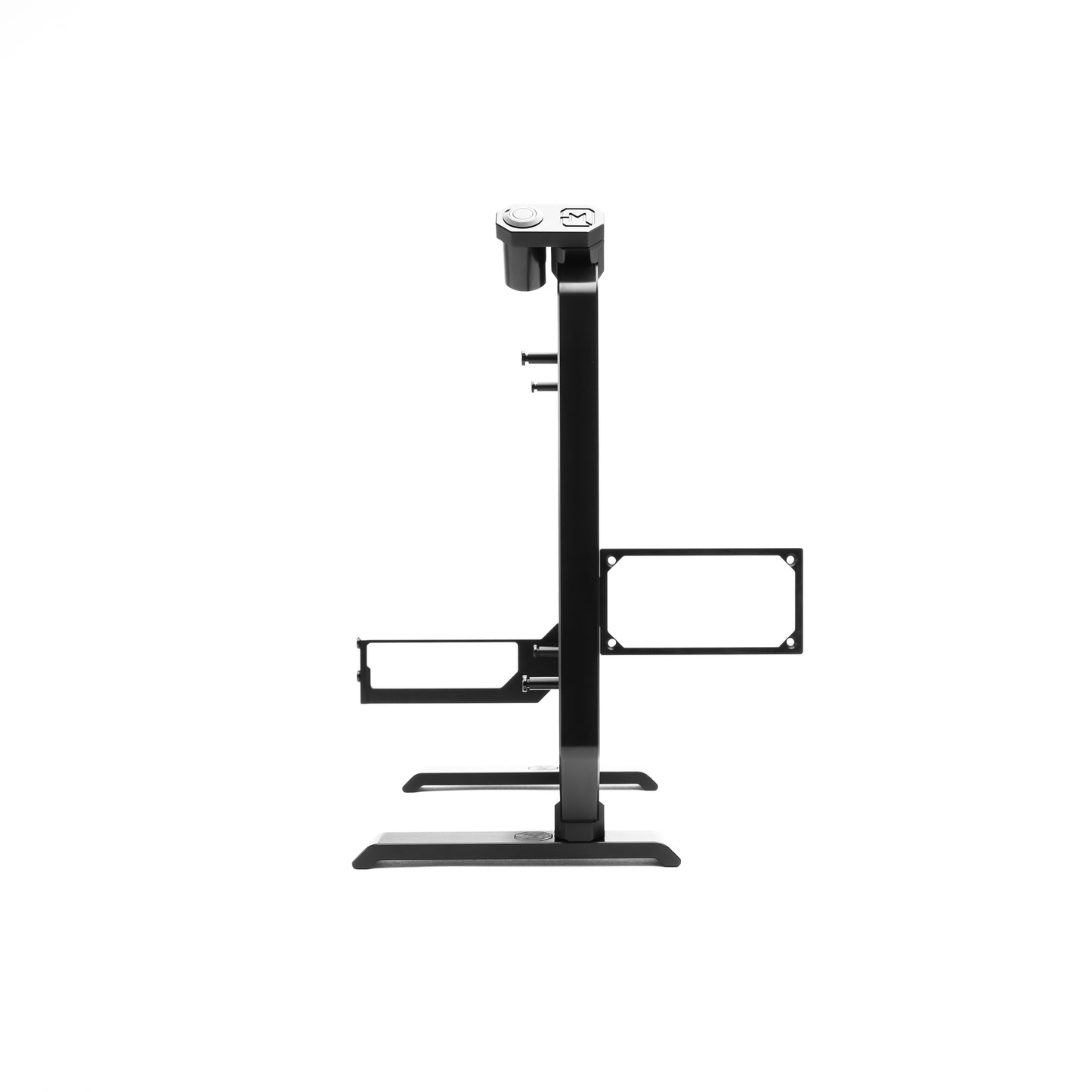

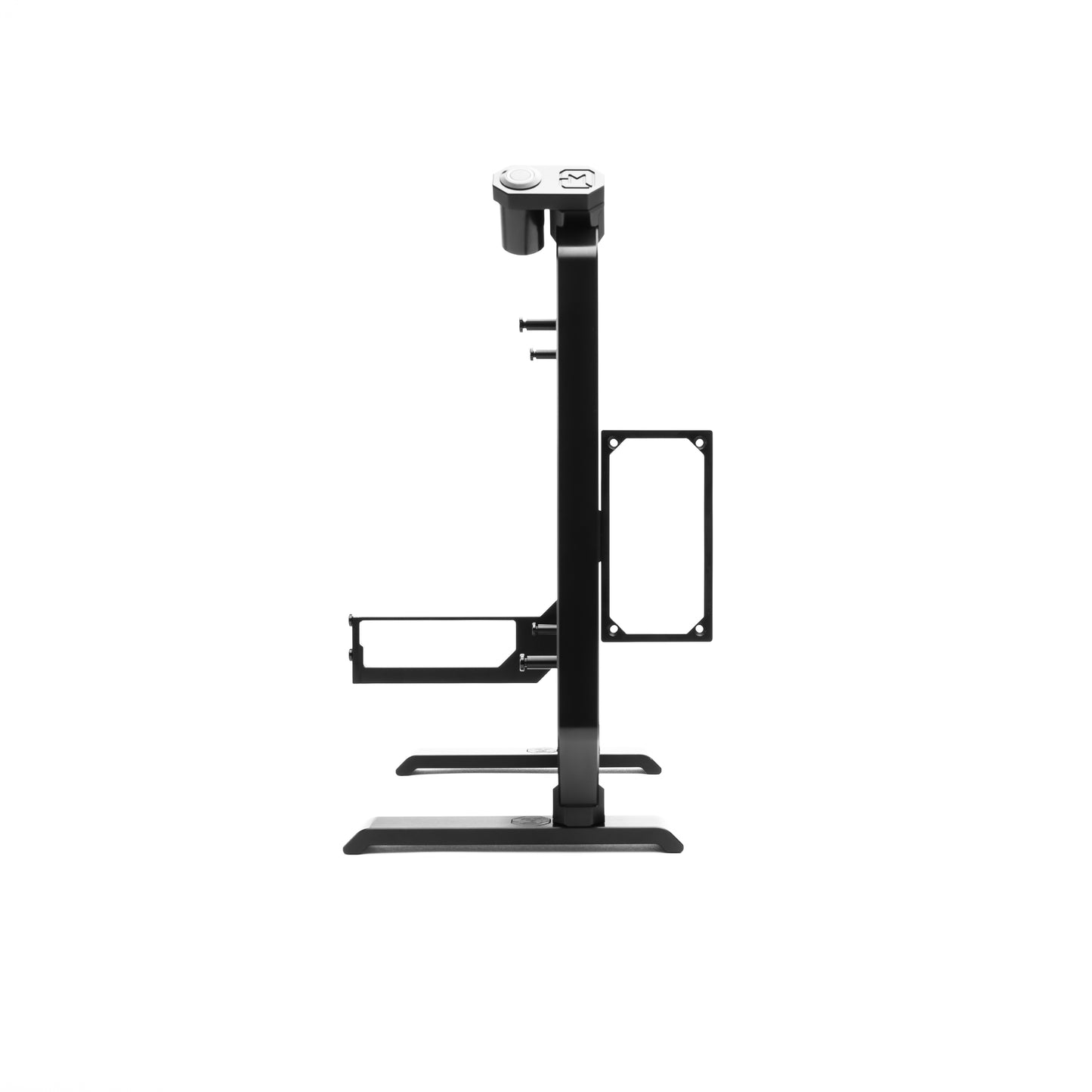

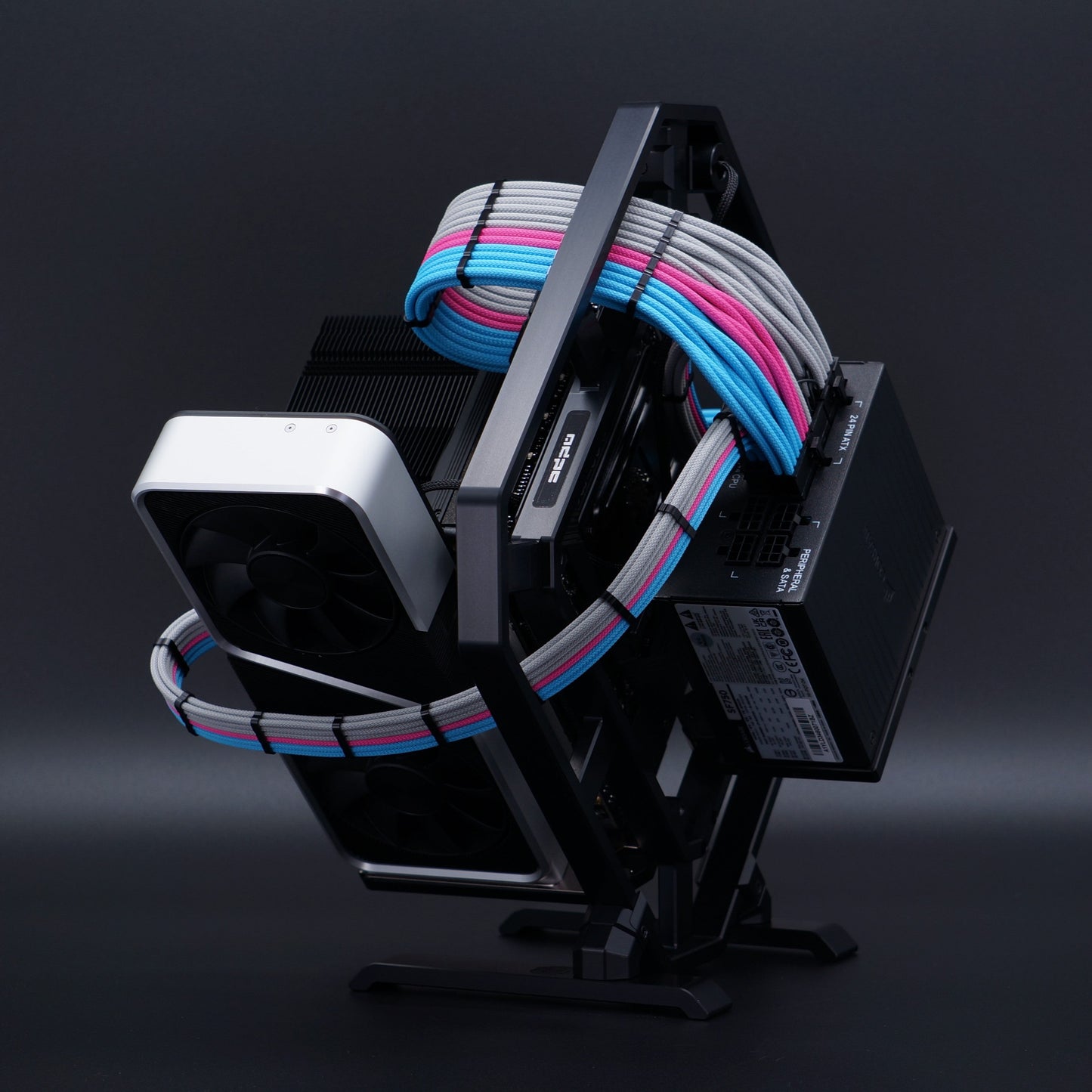

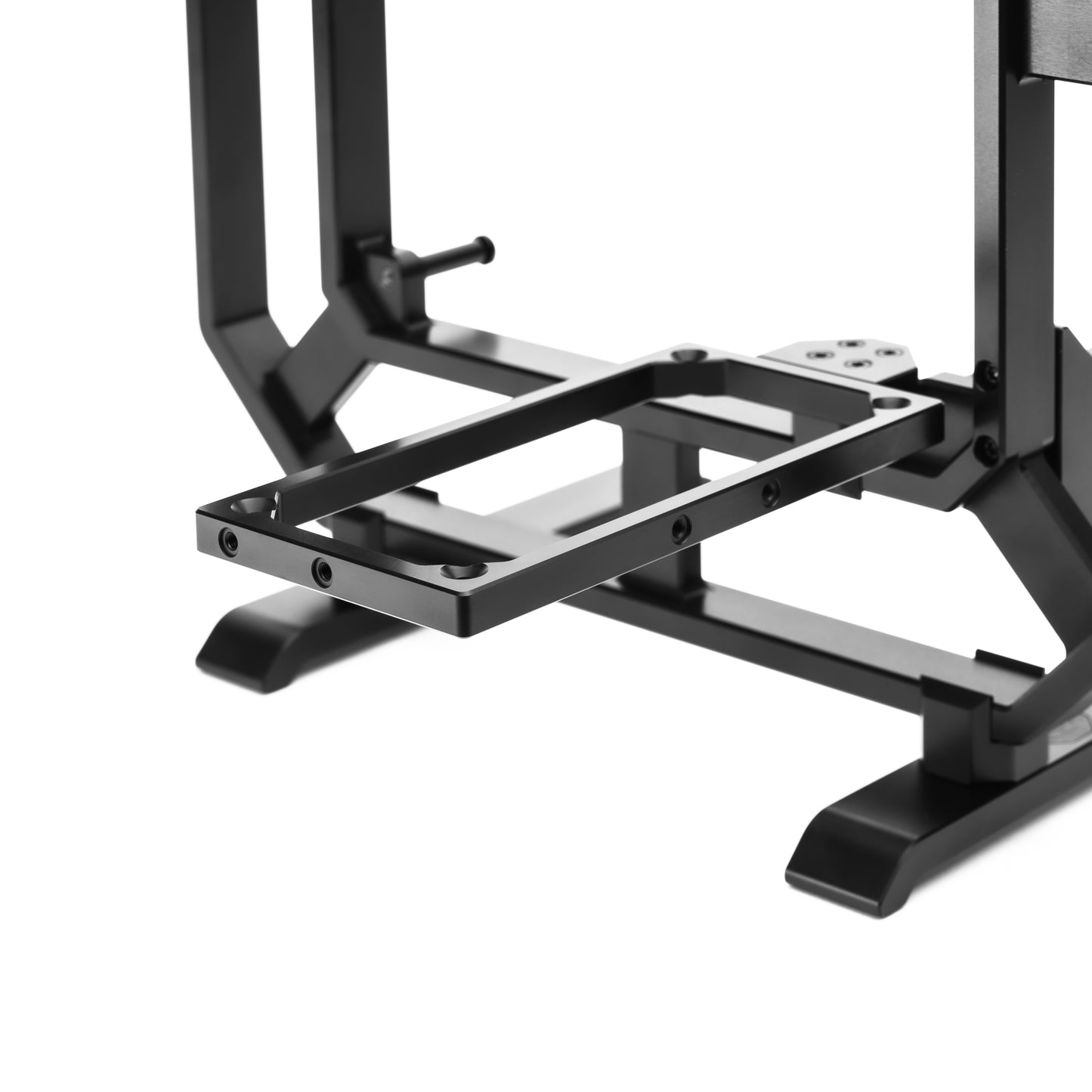

      • The PSU Mount can hold an SFX and SFX-L power supplies at various positions, both horizontally and vertically. It can be placed anywhere along the entire perimeter on the back of the main frame.

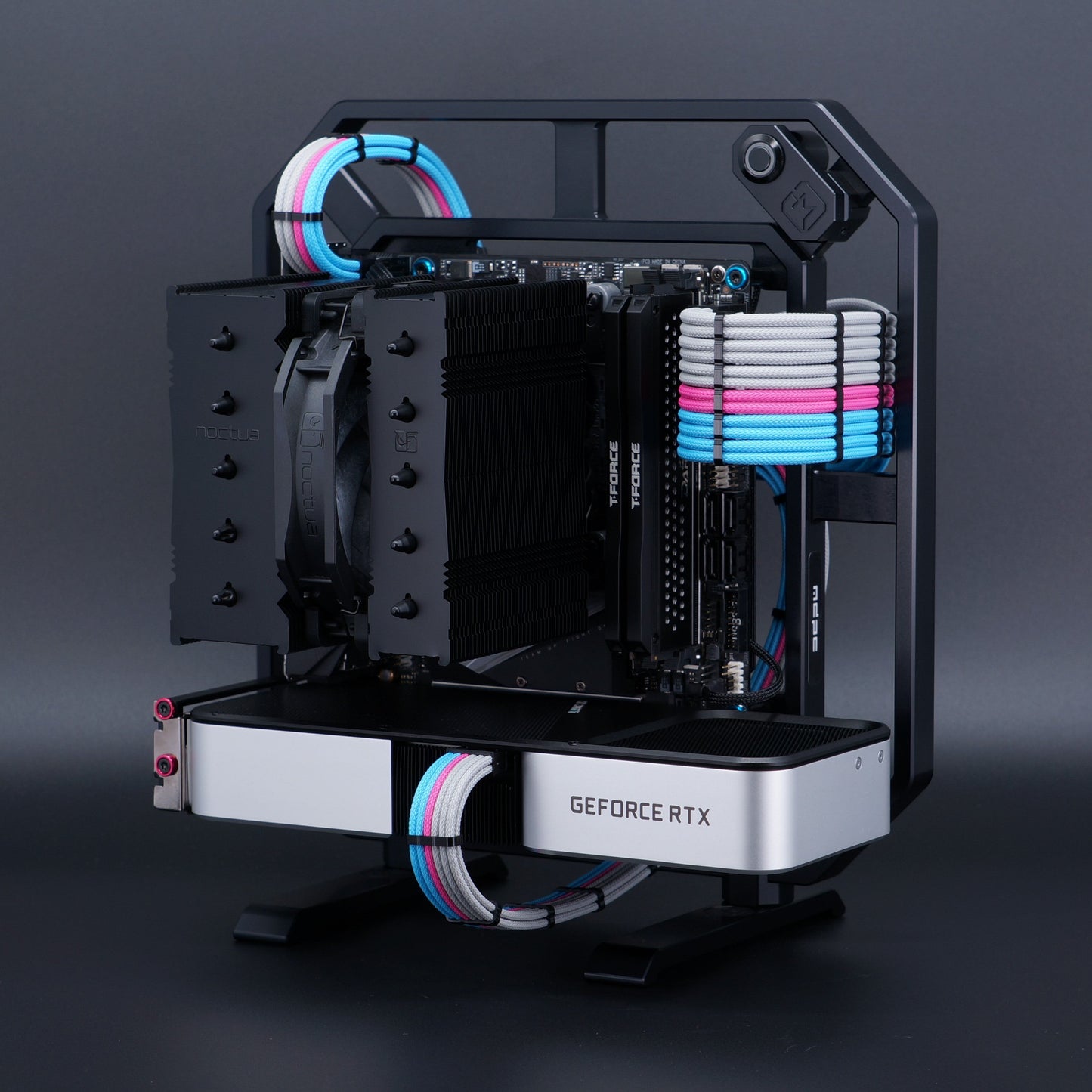

      • The GPU Mount is in a fixed position and can accommodate one or two-slot graphics cards. The structure is very rigid.

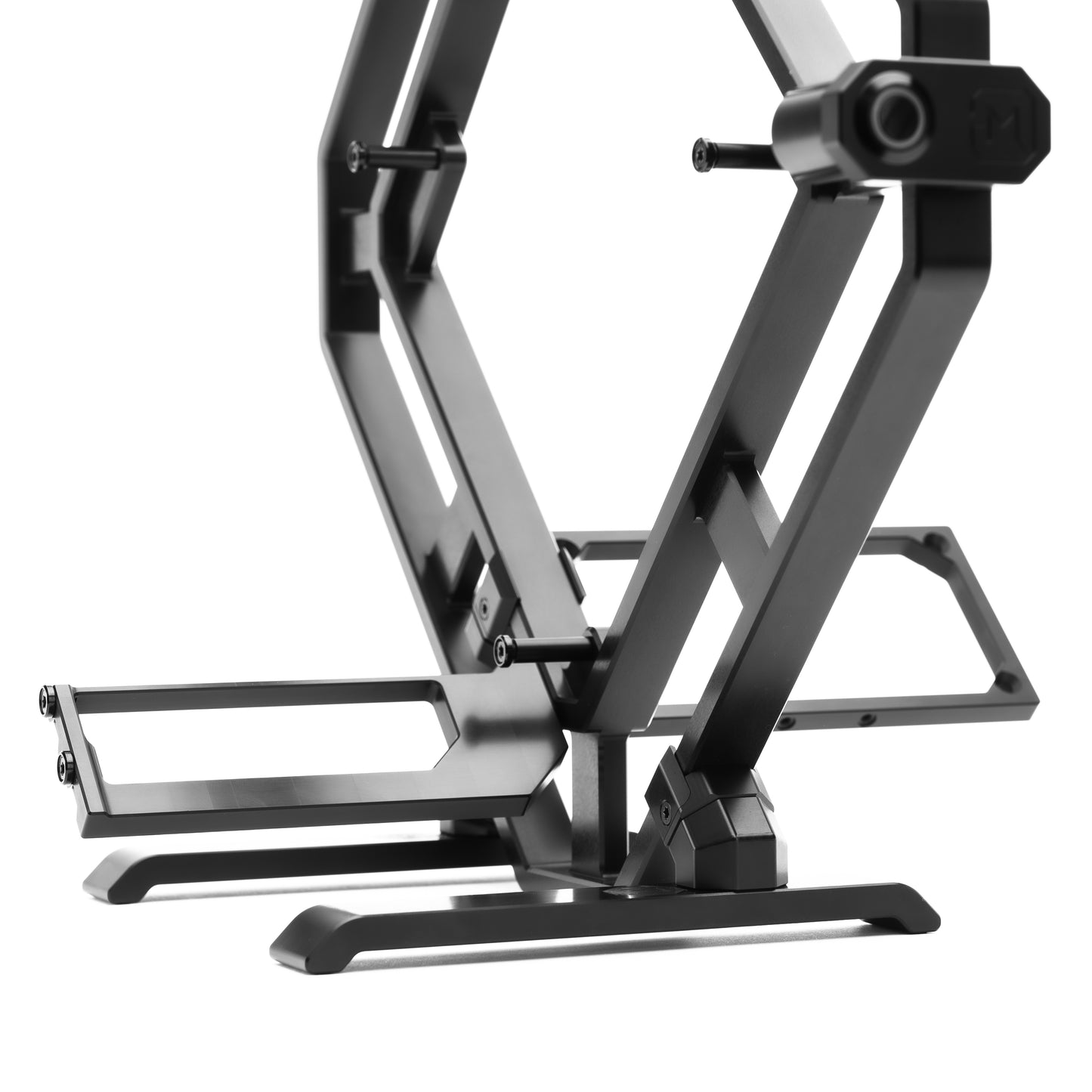

      • The SYS8 Foot can hold two positions to maintain balance and can also be rotated at 45-degree increments. Empty slots can be covered with a slot cover (included). The bottom has non-slippery rubber foot pads.
      • The 45-Degree angle spacer is a part that can be placed between the feet and the clamp to achieve a 45-degree positioning of the computer according to the stand surface.

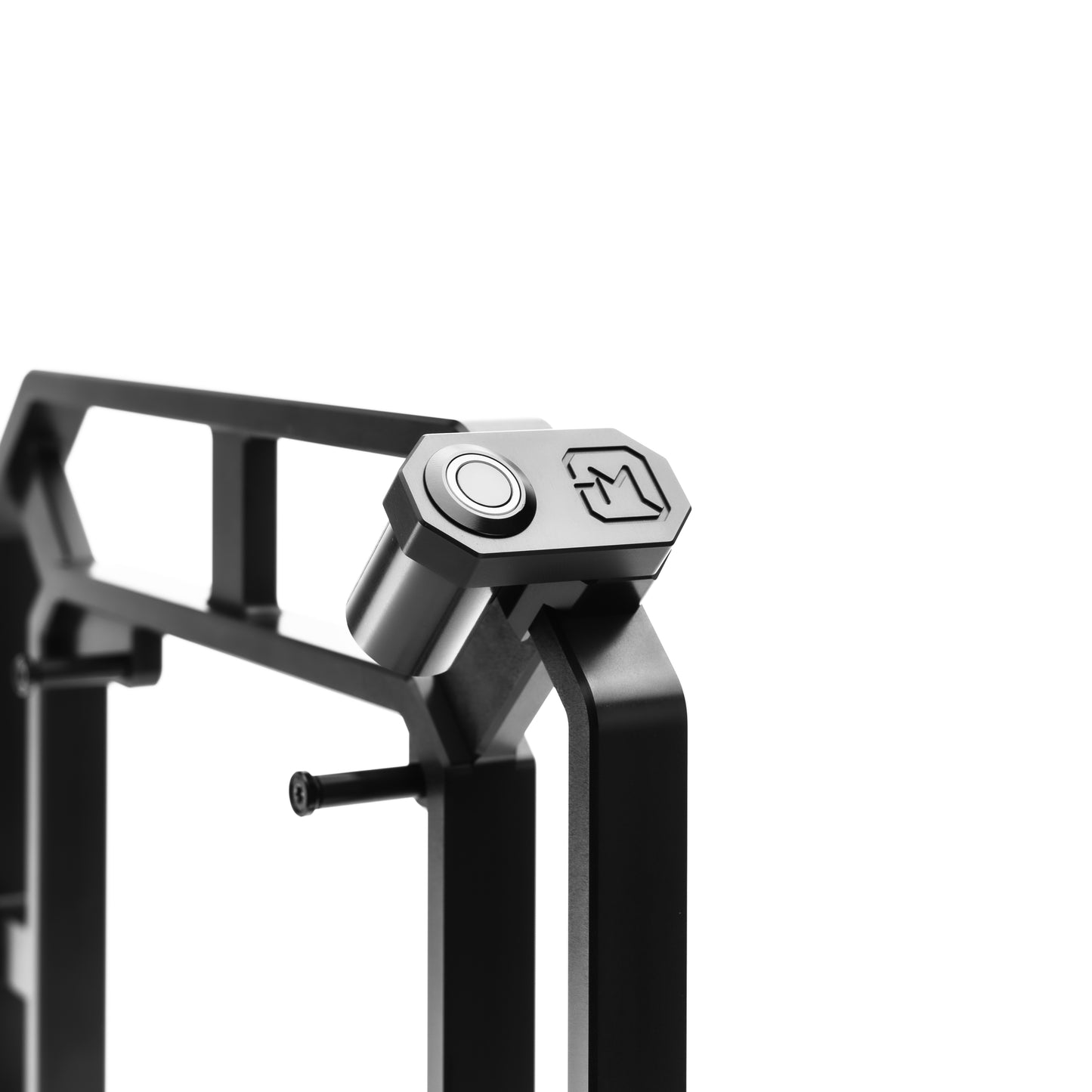

      • The POWER switch is preassembled (cable not connected to switch) and can be positioned anywhere on the frame. A white LED indicates the state of the PC. The connectors to the motherboard are labelled.

      Technical details:

        • Product dimensions (W x H x D): 290 x 340 x 280 mm
        • Color: Black Anodization
        • Material: 6082 aluminum, Steel (screews), TPE 60A (slot cover, feet)

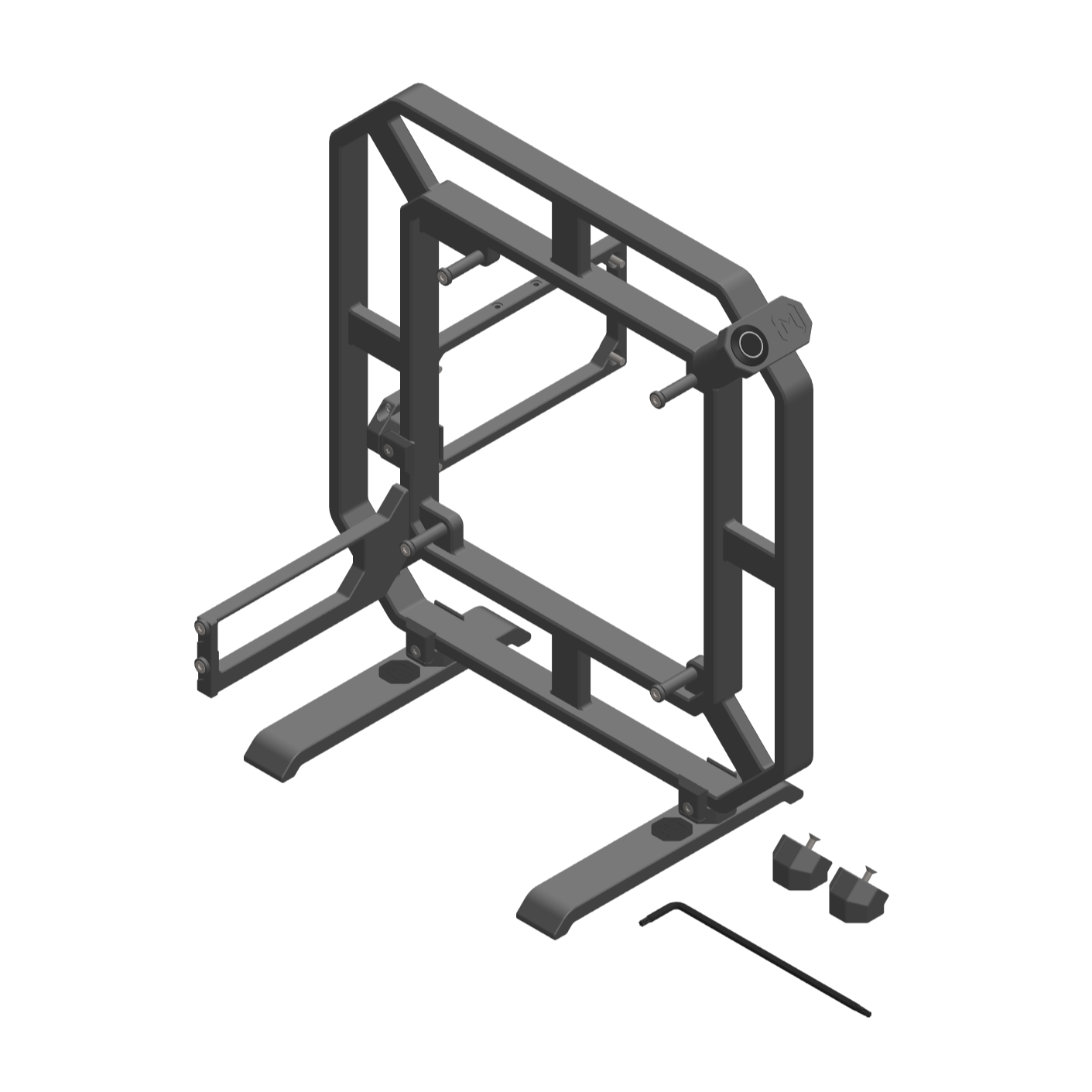

        Delivery scope:

        • 1x ITX frame
        • 1x GPU bracket
        • 1x PSU bracket
        • 1x PWR switch assembly
        • 2x Foot
        • 1x Link (narrow)
        • 2x 45-degree angle spacer
        • 4x Standoff with washers (for motherboard)
        • 4x SYS8 CLAMP assembly
        • 2x Slot cover
        • 33x Mounting screws
        • 1x TX10 Allen L-Key

        Supports:

        • ITX Motherboard
        • One, two and three-slot GPUs.
        • SFX ans SFX-L PSU

        Important Notes:

        • This assembly supports only air-cooled PC builds. Other configurations are available separately in the SYS8 accessories section.
        • Product dimensions may vary depending on the setup.
        • The product is just anodized, not sandblasted, to maintain tolerances. There can be slight variations in the anodization shade between parts. Machining marks may be visible.

        Instruction:

        • For additional guidance, refer to the instructional Video. (Coming soon, contact us for any questions.)
